4 Pcs - 40” Strut Cross Beams
4 Pcs - 40” Strut Cross Beams
SKU: HS40-4
PRODUCT TYPE: HVAC STAND & ACCESSORIES
Heavy-duty strut cross beams for Hercules modular HVAC equipment support.

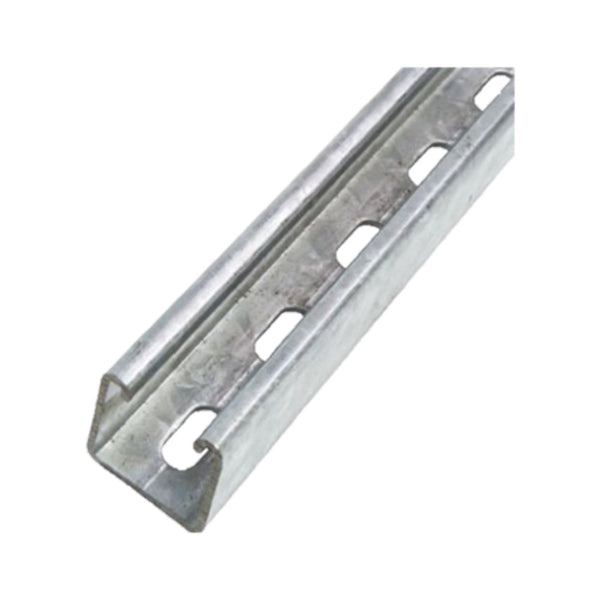

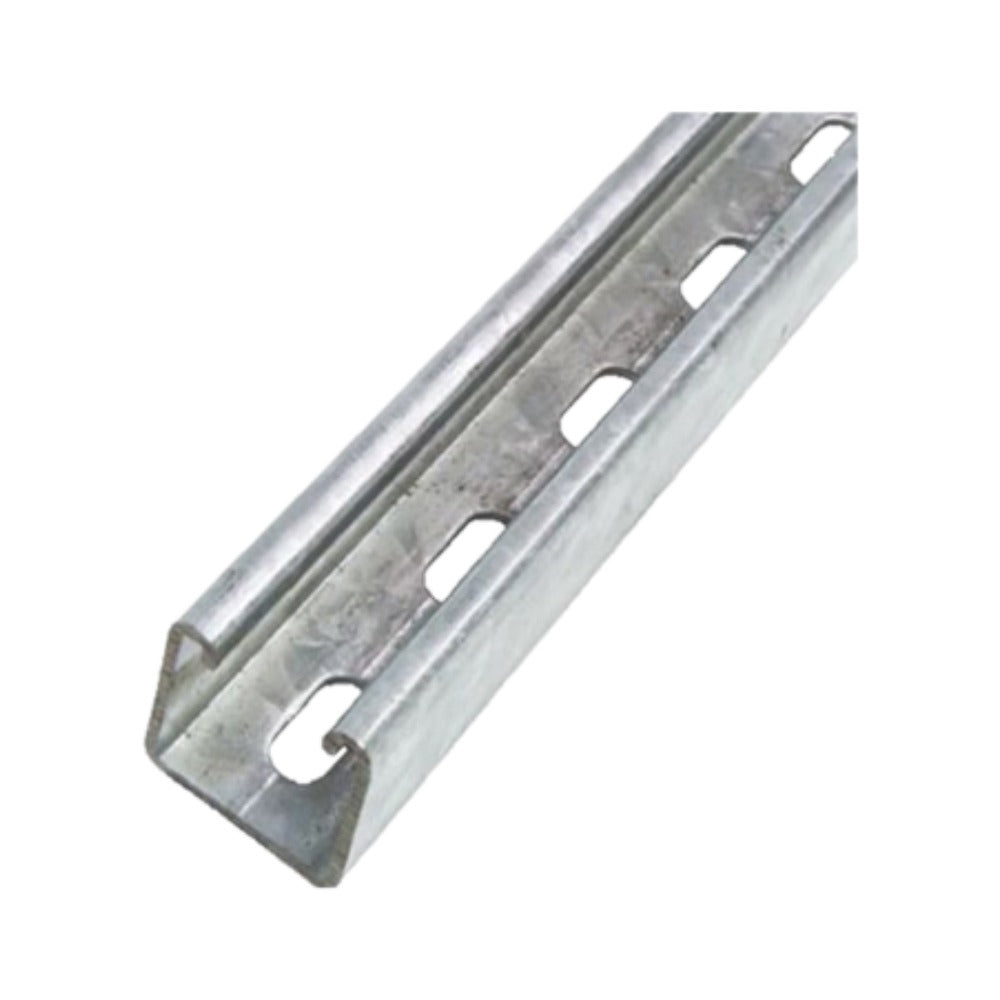

The HS40-4 Strut Cross Beams include four 40-inch, 14-gauge deep-slotted steel beams for building one Hercules modular base.
Product Overview:

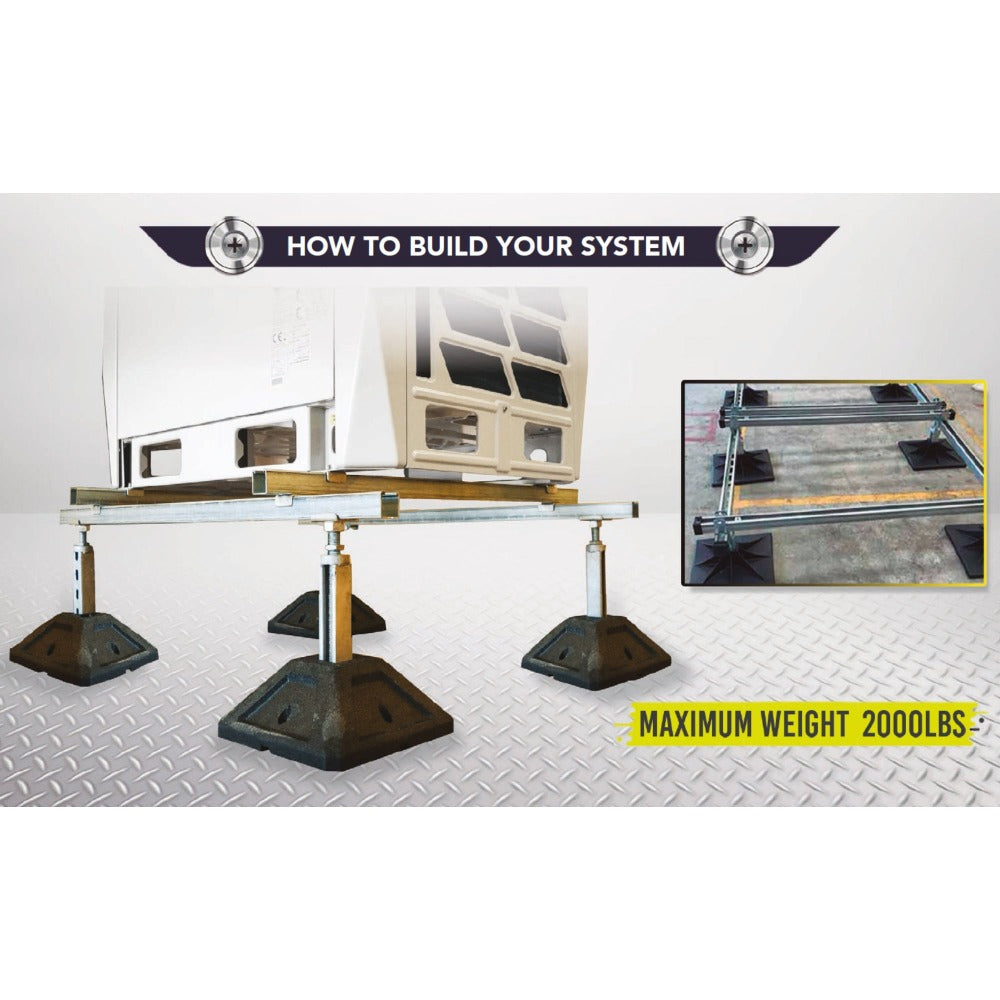

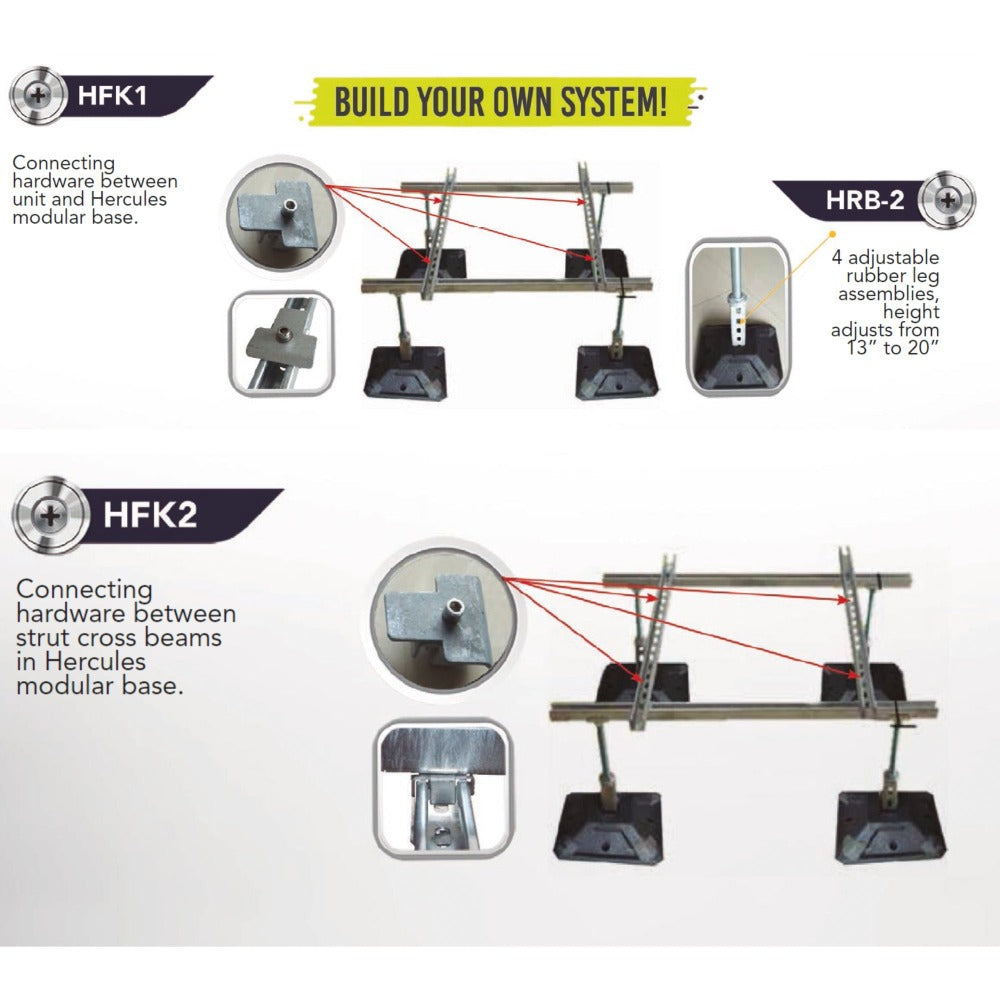

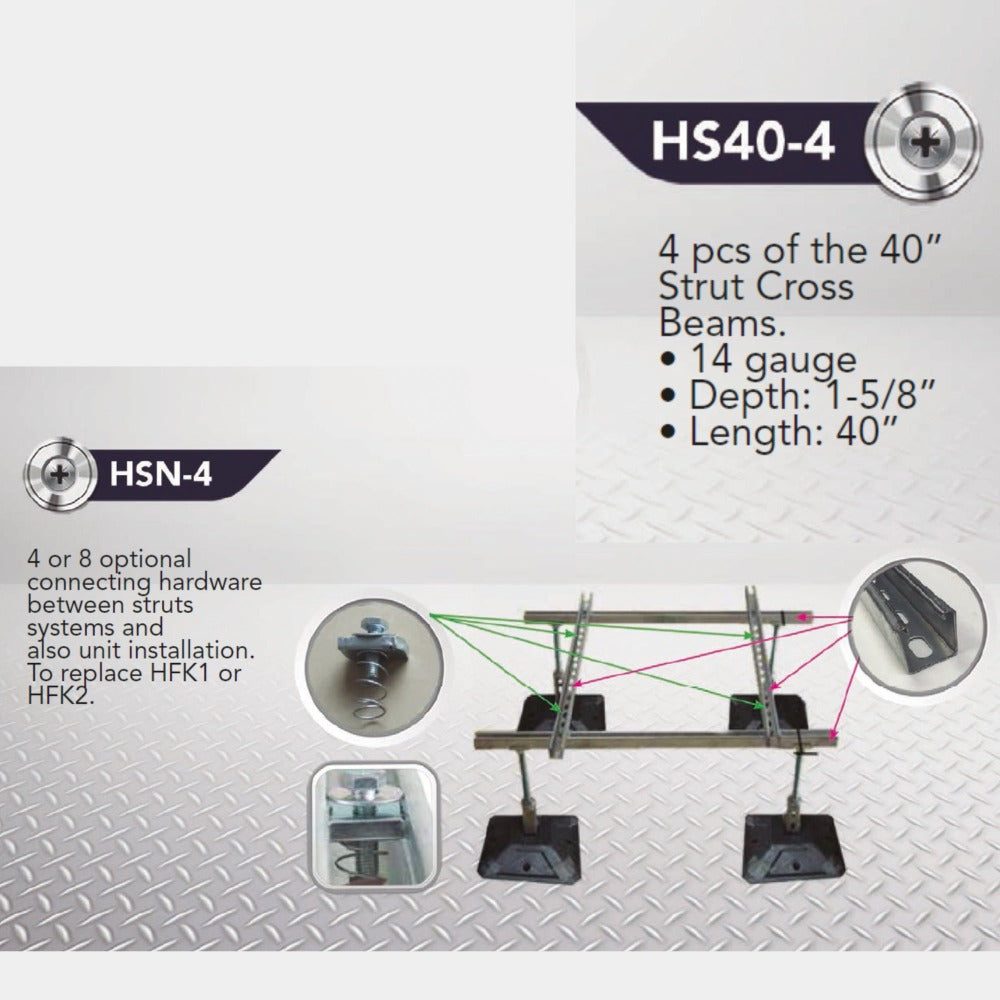

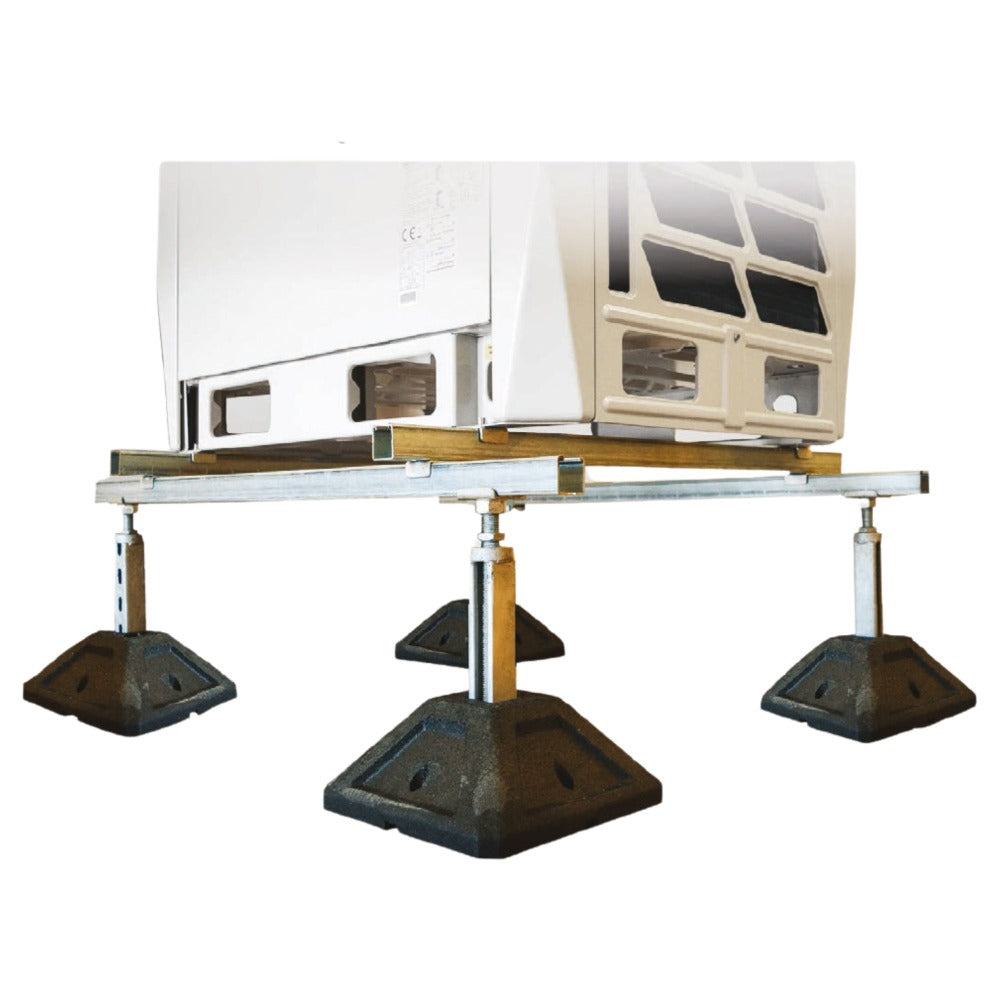

The 40-inch Strut Cross Beams form the support frame for a Hercules Modular Base Kit. Each beam measures 1-5/8 inches deep and 40 inches long. Two lower beams attach to the adjustable leg assemblies, while two upper beams connect across them to support the HVAC unit.
Features:
- Four strut cross beams for one Hercules modular base
- 14-gauge deep-slotted steel construction
- Beam length: 40 inches
- Strut depth: 1-5/8 inches
- Forms the lower and upper equipment support frame
- Bag quantity: 4 pieces
- Quantity needed for one modular base: 1 bag (4 pieces)
