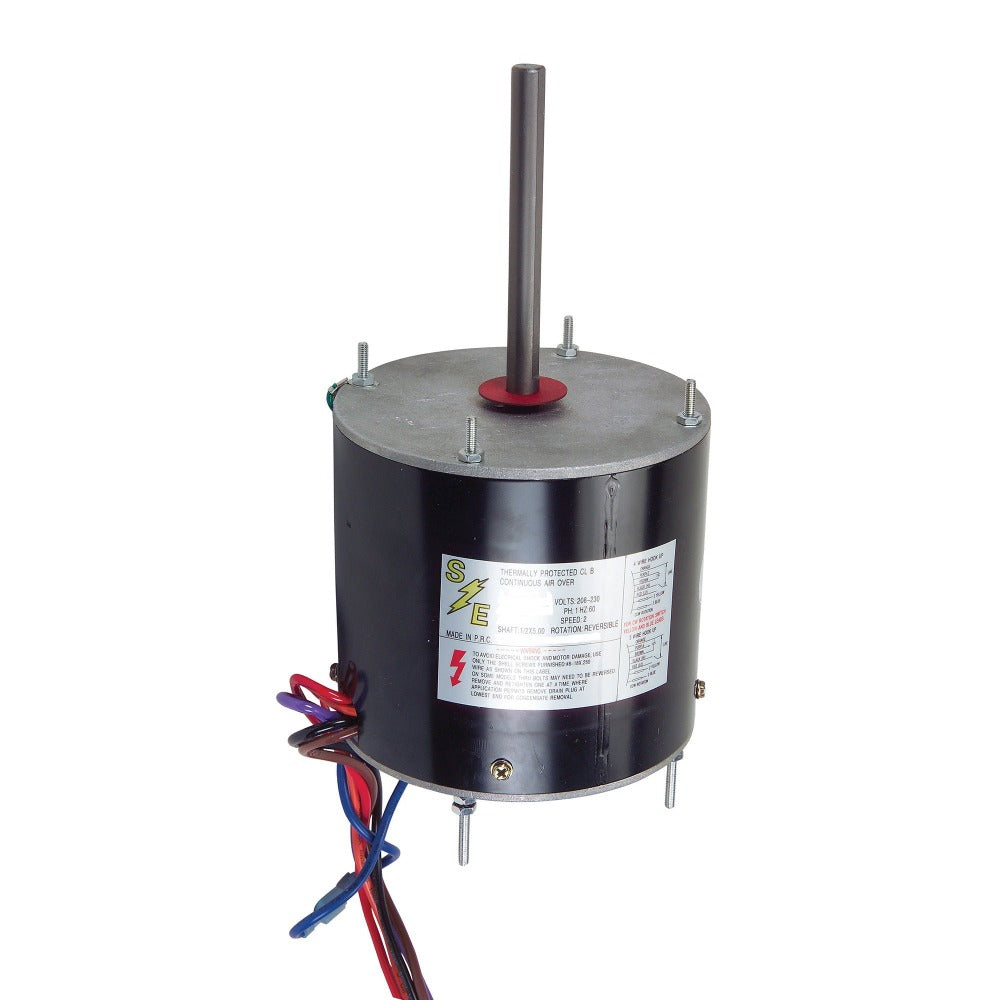

Vertical Condenser Multi-Horsepower Motor – 1075 RPM, Hi-Temp 70°C, 1/2HP, 208/230V
Vertical Condenser Multi-Horsepower Motor – 1075 RPM, Hi-Temp 70°C, 1/2HP, 208/230V
SKU: SE3380
PRODUCT TYPE: HVAC MOTORS
High-temperature multi-horsepower vertical condenser fan motor rated to 158°F/70°C.
This Vertical Condenser Multi-Horsepower Motor (1075 RPM, Hi-Temp 70°C, 1/2HP, 208/230V) is built for continuous duty in high ambient conditions.
Product Overview
Built with ball bearings and a short 4" body, this multi-horsepower vertical condenser motor operates across a -4°F to 158°F (-20°C to 70°C) temperature range with 2 speeds, making it well suited for high ambient outdoor conditions.
Features
- Speed: 1075 RPM
- Horsepower: 1/2 HP
- Voltage: 208/230V
- Ball Bearings
- 2 Speeds
- Highest Operating Temperature: 158°F/70°C
- Short 4" Body
- Operating Temp: -4°F to 158°F (-20°C to 70°C)
