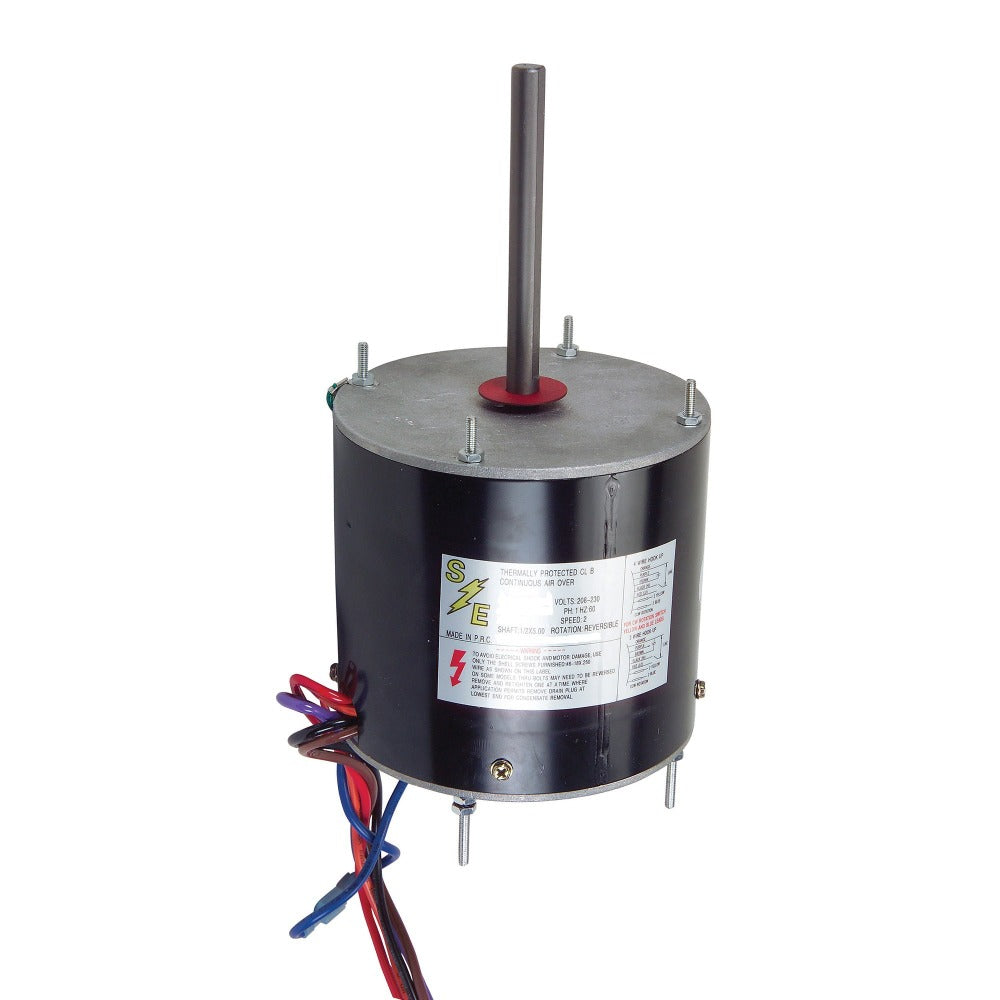

Vertical Condenser Motor – Multi-Horsepower, 825RPM, Hi-Temp 70°C, 1/6-1/3HP, 208/230V
Vertical Condenser Motor – Multi-Horsepower, 825RPM, Hi-Temp 70°C, 1/6-1/3HP, 208/230V
SKU: SE3177
PRODUCT TYPE: HVAC MOTORS
Multi-horsepower, hi-temp rated vertical condenser motor for demanding outdoor HVAC condenser fan applications.
This Multi-Horsepower Vertical Condenser Motor (1/6 to 1/3 HP) runs at 825 RPM on 208/230V with a hi-temp 70°C rating for extended operating range.
Product Overview
Built with a short 4" body and 1/2" x 5" shaft, this multi-horsepower PSC condenser motor covers 1/6 through 1/3 HP applications at 825 RPM on 208/230V. Rated for a highest operating temperature of 158°F/70°C, it offers ball bearings, 2 speeds, reversible rotation, and a totally enclosed design.
Features
- Horsepower: 1/6 to 1/3 HP
- Speed: 825 RPM
- Voltage: 208/230V
- Motor Type: PSC
- Ball bearings
- 2 speeds
- Hi-temp rated: 70°C (158°F) highest operating temperature
- Operating temp: -4°F to 158°F (-20°C to 70°C)
- Short 4" body, 1/2" x 5" shaft
- Rheem mounting holes
- 36" leads
- Thermal protection
- Reversible rotation
- Totally enclosed
- Multi-horse application
SHARE:
View full details
Direct Replacements
| MFG Name | MFG# |
|---|---|
| MARS | 20459 |
| PACKARD | 45488BF |
| AOS / CENTURY | ORM5488BF |
| WAGNER / DIVERSITECH | WG840459HT |
| GENTEQ / GE | 3459HS |
| US MOTORS / NIDEC | 1874H |
