Direct Drive Variable Speed & Constant Torque ECM Motor – 1/2–1 HP – 115/230V – 1075 Variable RPM
Direct Drive Variable Speed & Constant Torque ECM Motor – 1/2–1 HP – 115/230V – 1075 Variable RPM
High-performance ECM motor with optional Bluetooth® control for precise HVAC airflow and dependable operation.
The Direct Drive Variable Speed & Constant Torque ECM Motor (1/2–1 HP) is engineered for residential and light commercial HVAC systems. Designed to replace a wide range of OEM ECM motors, it delivers variable speed control, constant torque performance, and energy-efficient operation with easy installation.
Product Overview:
This motor features integrated Bluetooth® control for use with a smartphone app, providing optional monitoring and adjustments. Bluetooth is not required for installation. Connects directly to OEM harnesses without additional modules or adapters, simplifying installation and replacement.
Designed for multi-horsepower operation with dual voltage capability and up to 85% efficiency, it offers precise airflow, energy savings, and long-term reliability across a broad range of HVAC applications.
Replaces:
- Constant Torque ECMs: X13®, Endura® Pro, SelecTech®, Evergreen® EM, Rescue® EZ13®, Azure ECM®
- 16-Pin OEM Variable Speed ECMs: PWM, 2.0, 2.3, 2.5, EON®, Evergreen® VS, Rescue® EZ16®, Azure ECM®
- Many* 4-Pin OEM Variable Speed ECM 3.0 motors: Evergreen® VS, Azure ECM®
Features:
- Variable speed and constant torque ECM design
- Four speeds plus 625 RPM constant fan mode
- High efficiency operation: up to 85%
- Multi-horsepower capability: 1/2 – 1 HP
- Dual voltage operation: 115V / 230V
- Integrated Bluetooth® control (optional)
- Direct OEM harness connection – no adapter required
- Belly band mount
Specifications:
- Rated speed: Up to 1075 Variable RPM
- Insulation class: Class B
- Thermal overload protection
- Operating temperature range: -20°C to 55°C (-4°F to 131°F)
- UL Recognized

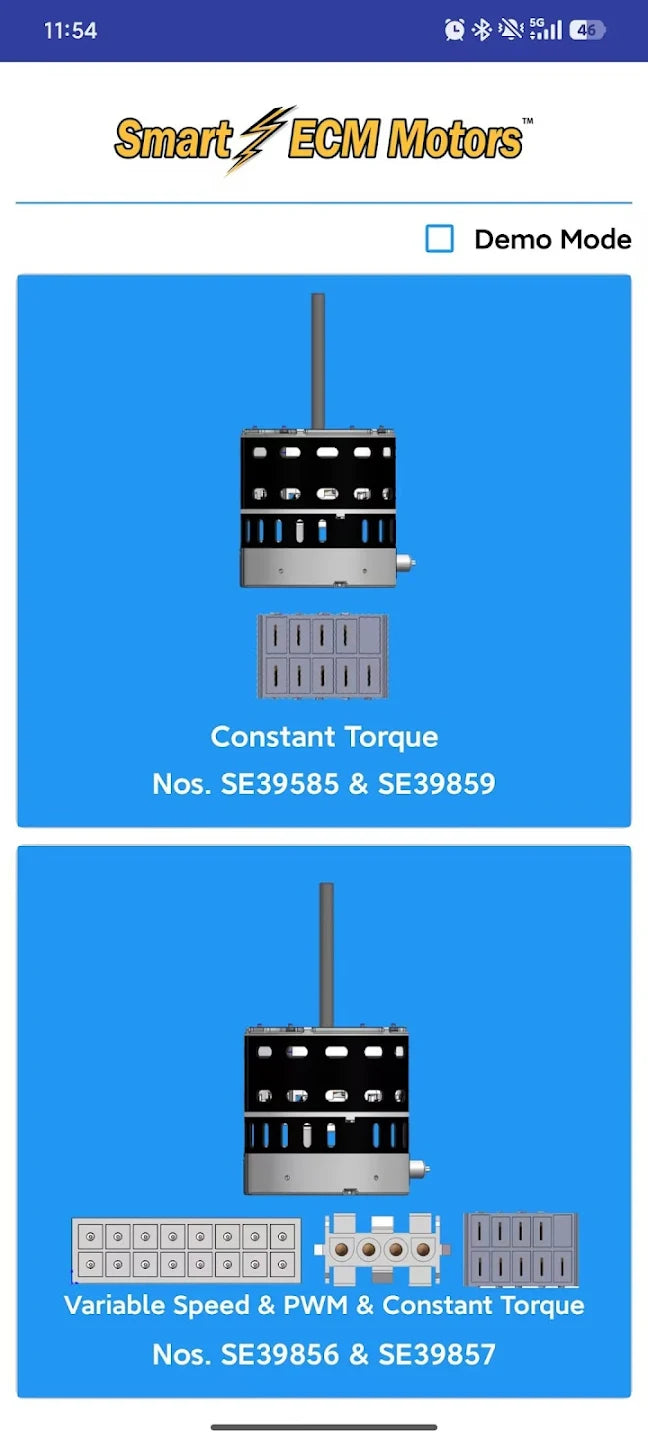

Smart ECM Motors APP Operation Guide
Smart ECM Motor App:
