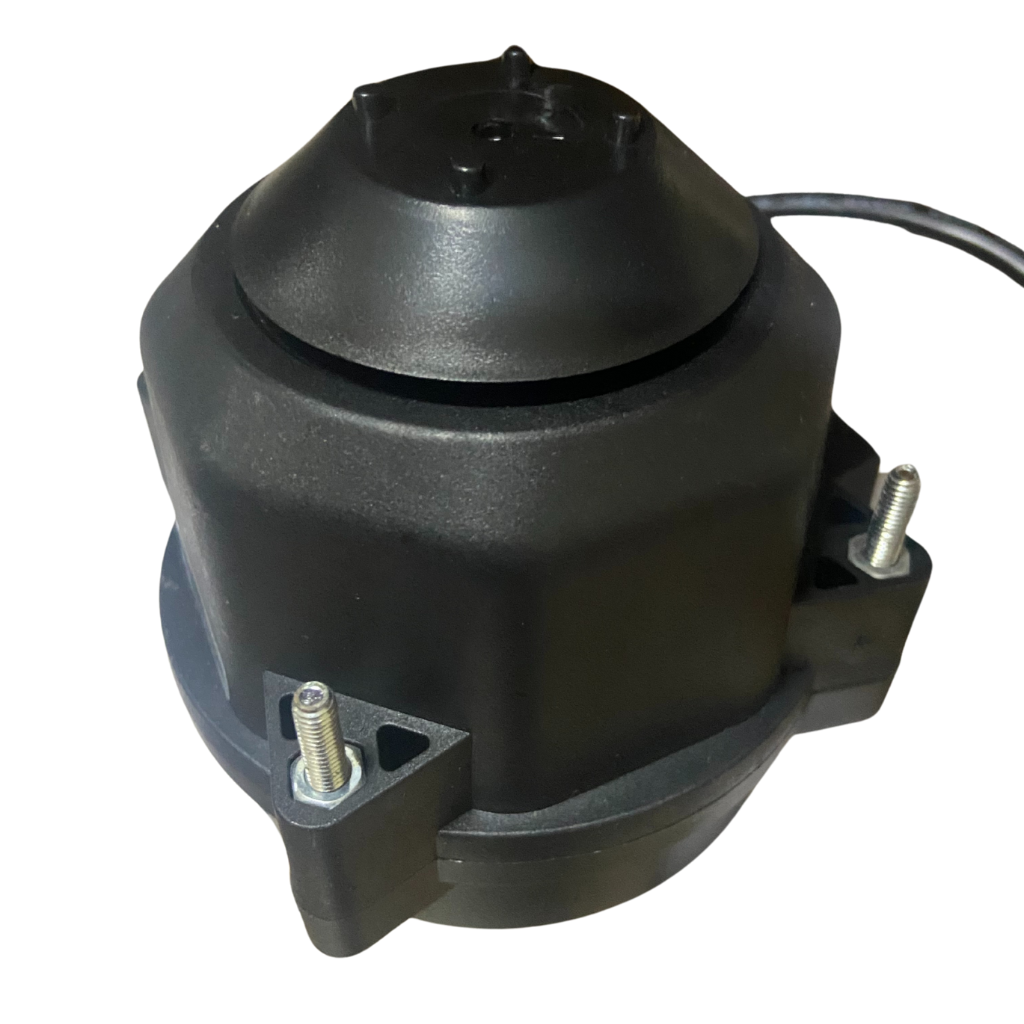

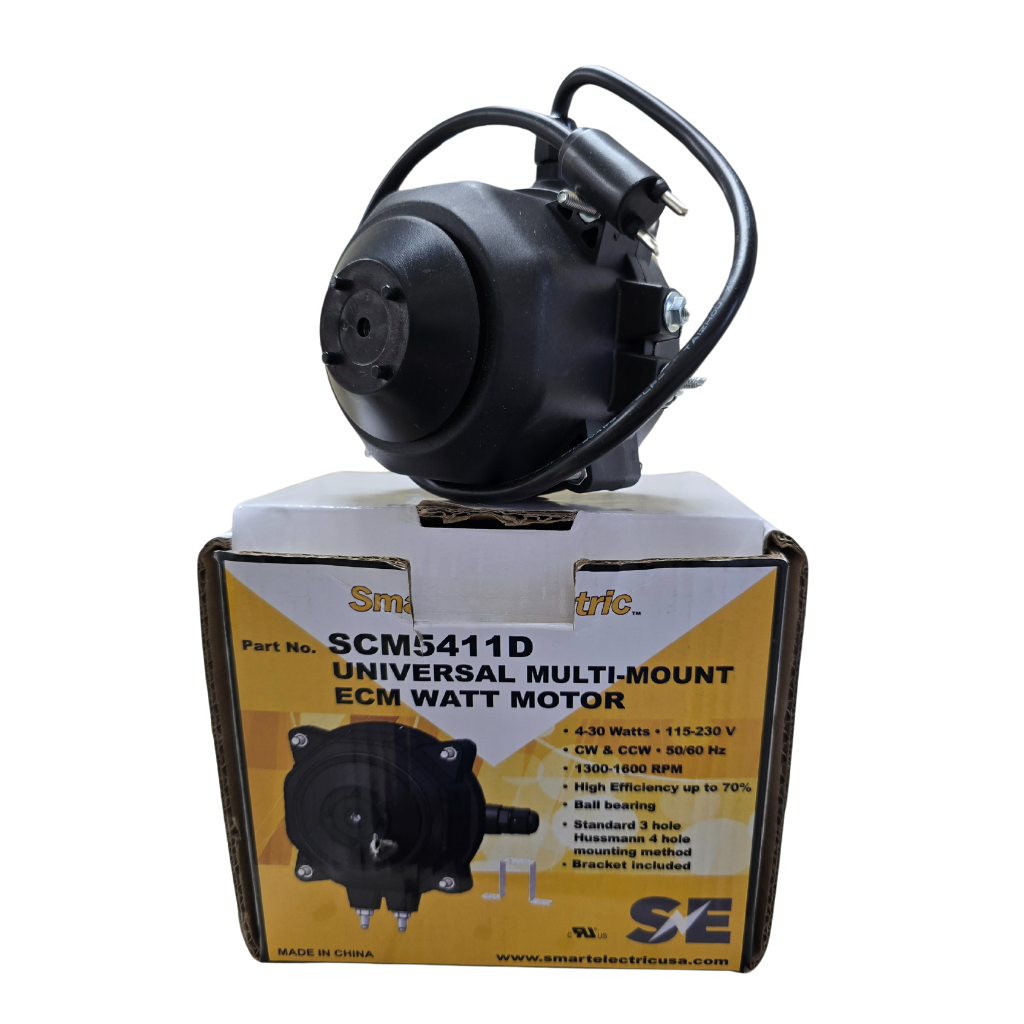

ECM Watt Motor – 115V/230V, CW/CCW, 4-30 Watts, 1300-1600 RPM
ECM Watt Motor – 115V/230V, CW/CCW, 4-30 Watts, 1300-1600 RPM
SKU: SCM5411D
PRODUCT TYPE: REFRIGERATION MOTORS
High-efficiency universal ECM watt motor built for evaporator and condenser refrigeration applications.
This ECM Watt Motor (4-30 Watts, 1300-1600 RPM) runs on 115V/230V dual voltage with reversible CW/CCW rotation and IP67 water resistance for demanding refrigeration environments.
Product Overview
Built with an aluminum frame and ball bearing system, this universal ECM watt motor delivers up to 70% efficiency for evaporator and condenser applications. Dual voltage operation requires no connection changes, and standard 3-hole or Hussman 4-hole mounting supports universal fitment. It's UL1004-1 and UL1004-2 compliant.
Features
- Wattage: 4 to 30 Watts
- Speed: 1300-1600 RPM
- Voltage: 115V/208-230V
- Rotation: CW/CCW, reversible with easy configuration
- IP67 rated: submersible up to 30 minutes
- Suitable for evaporator and condenser applications
- High efficiency: up to 70%
- Universal mounting: standard 3-hole / Hussman 4-hole
- No connection change required for dual voltage
- Thermally protected
- Ball bearing system
- Aluminum frame
- Standard shaft size: 1/4-20 thread
- Operating temp: -40°F to 158°F (-40°C to 70°C)
- Complies with UL1004-1, UL1004-2
