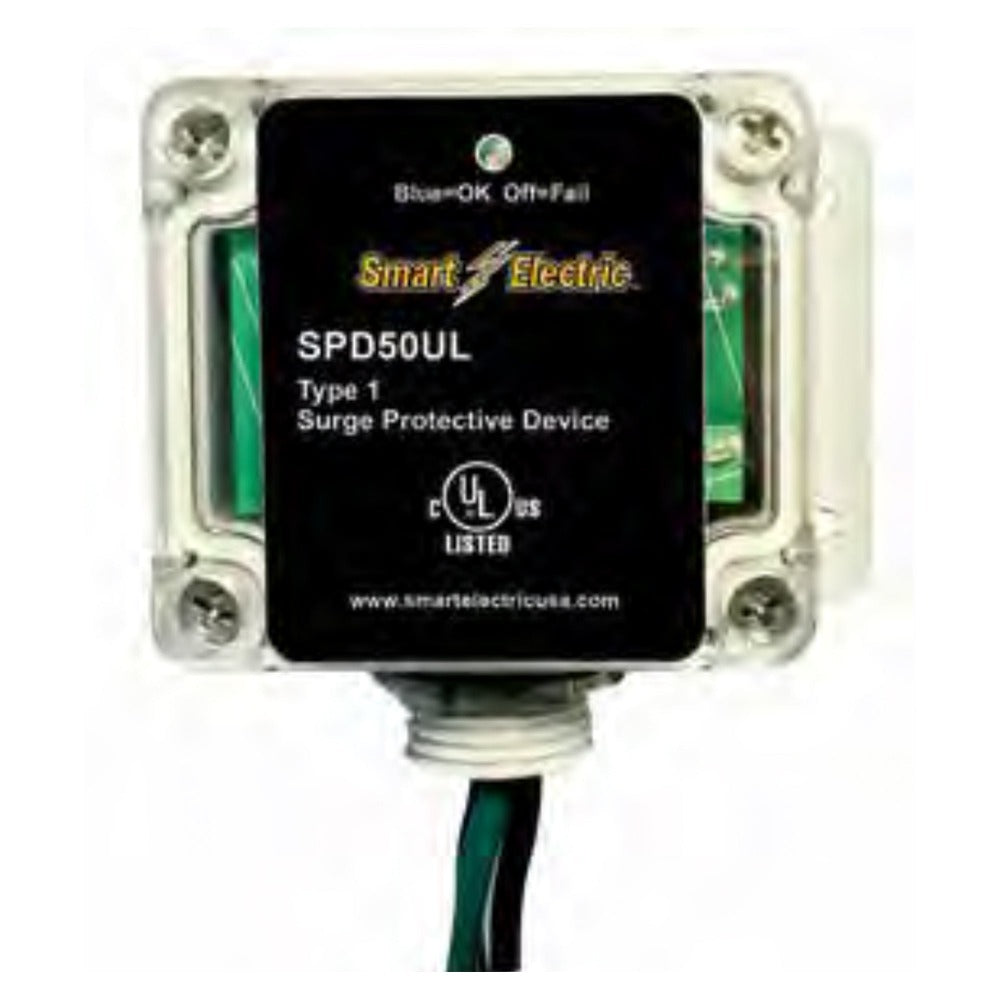

Surge Protective Device – SPD50UL, UL Type 1, PTMOV, SCCR 200kA
Surge Protective Device – SPD50UL, UL Type 1, PTMOV, SCCR 200kA
SKU: SPD50UL
PRODUCT TYPE: SURGE PROTECTORS
UL Type 1 surge protective device with PTMOV technology for reliable panel protection.
This SPD50UL Surge Protective Device is UL 1449 Ed. 4 listed for 120/240 Vac split-phase 2W+G systems, using PTMOV surge component technology with a 200kA short-circuit current rating.
Product Overview
Certified as a UL Type 1 SPD under UL 1449 Ed. 4, this surge protective device uses PTMOV surge component technology. It features a NEMA 4X enclosure and a simple parallel connection for straightforward installation, backed by a 3-year warranty.
Features
- Part No.: SPD50UL
- Nominal Voltage: 120/240 Vac split-phase 2W+G
- Certification: UL Type 1 SPD
- UL Listed: UL 1449 Ed. 4
- Surge Component Technology: PTMOV
- Normal Discharge Rating (In): 10kA
- Short Circuit Current Rating (SCCR): 200kA
- Max. Continuous Operating Voltage (MCOV): 150/320V
- VPR: 700VAC (L-G) / 1200VAC (L-L)
- Enclosure Type: NEMA 4X
- Connection: Simple parallel connection
- Product Warranty: 3 years
