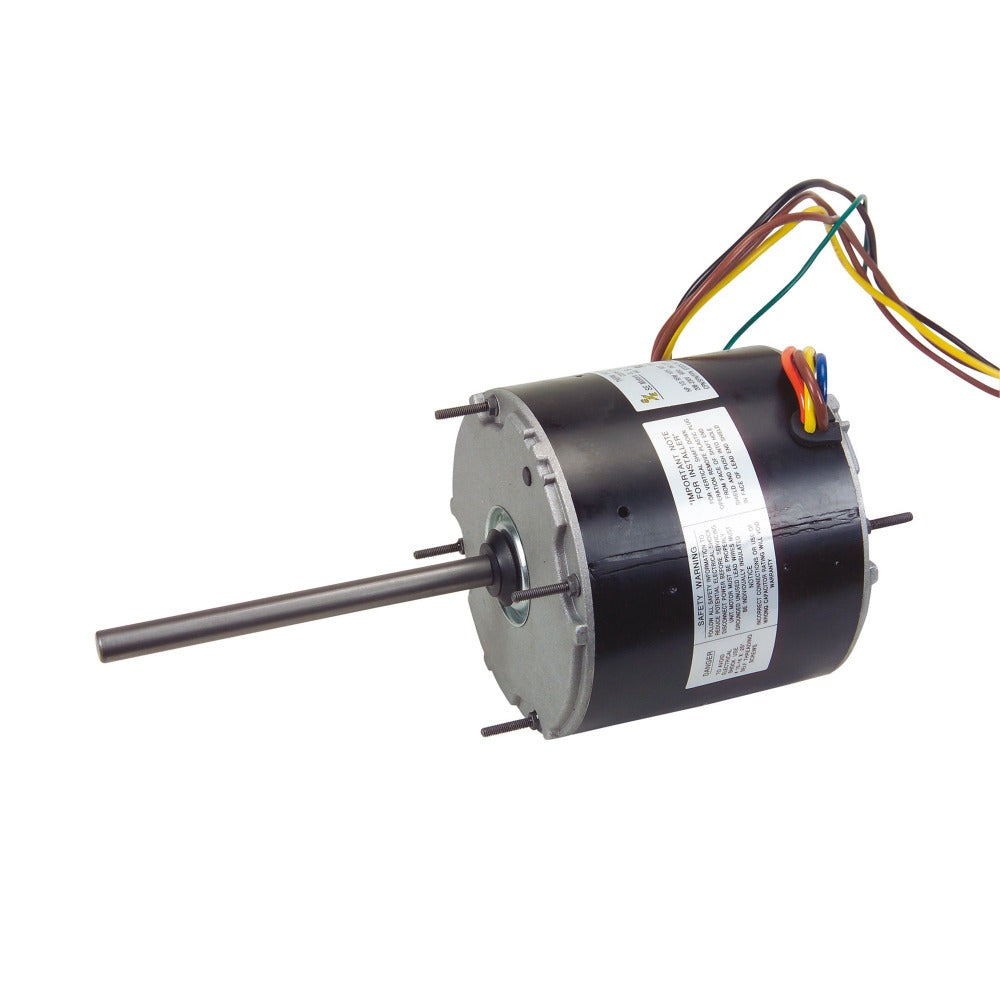

Vertical Condenser Motor – 825RPM, Ball Bearing, 60°C, 1/4HP, 208/230V

Vertical Condenser Motor – 825RPM, Ball Bearing, 60°C, 1/4HP, 208/230V

SKU: SE3338   PRODUCT TYPE:  HVAC MOTORS

Ball bearing vertical condenser motor built for durable outdoor HVAC condenser fan applications.

This 1/4 HP Vertical Condenser Motor runs at 825 RPM on 208/230V with ball bearings rated for 60°C continuous operation.

Product Overview

Built on a 48 frame with a 5 1/2" diameter and full six-inch shaft length, this vertical condenser motor supports both up/down mounting orientations with reversible rotation. All-angle ball bearings and a water slinger on the shaft help protect against moisture, while thru bolt or band mounting adds installation flexibility.

Features

  • Horsepower: 1/4 HP
  • Speed: 825 RPM
  • Voltage: 208/230V
  • Bearing: Ball bearing, rated to 60°C
  • Up/down design, reversible rotation
  • Single speed
  • Frame: 48 Frame, 5 1/2" diameter
  • Full six-inch shaft length
  • Water slinger on shaft
  • Thru bolt or band mounting
