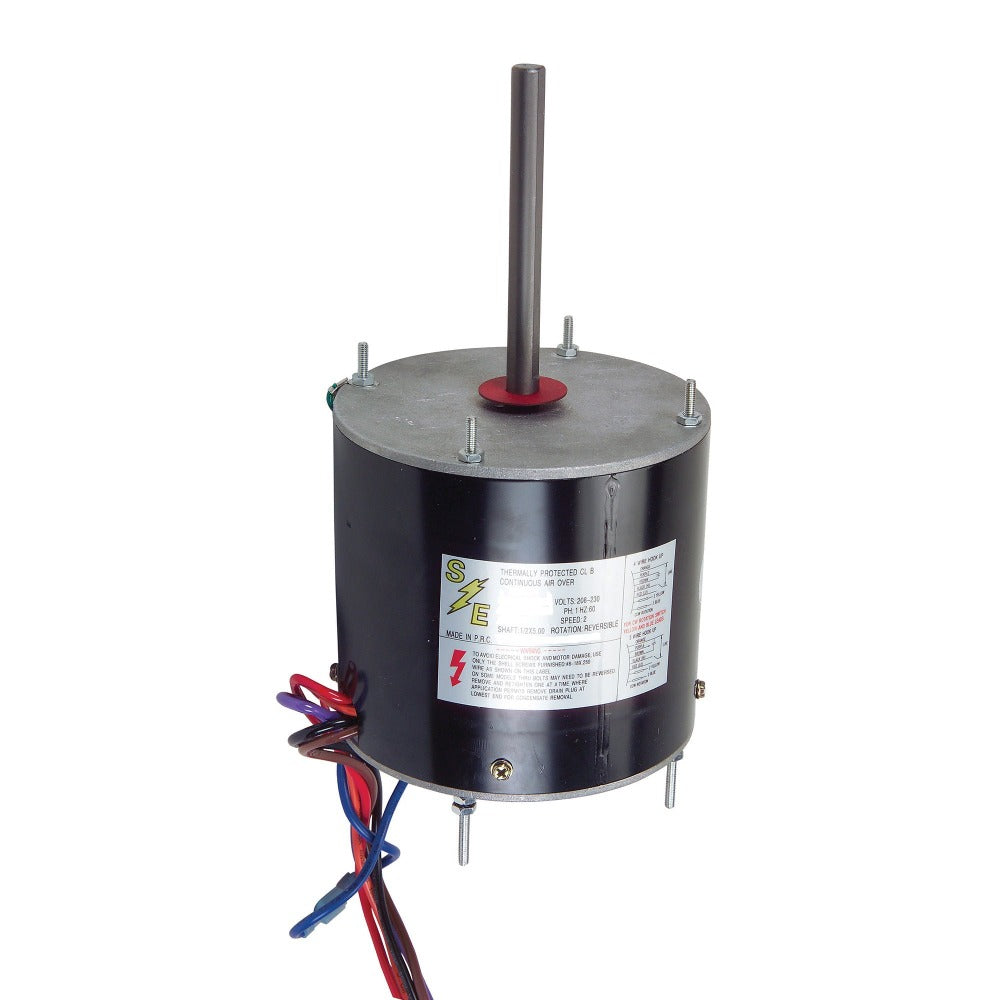

Vertical Condenser Motor – Multi-Horsepower, 1075RPM, 60°C, 1/2-1/5HP, 230V, Ball Bearing
Vertical Condenser Motor – Multi-Horsepower, 1075RPM, 60°C, 1/2-1/5HP, 230V, Ball Bearing
SKU: SE3468
PRODUCT TYPE: HVAC MOTORS
Multi-horsepower vertical condenser motor for flexible replacement across common HVAC condenser fan applications.
This Multi-Horsepower Vertical Condenser Motor (1/2, 1/3, 1/4, 1/5 HP) runs at 1075 RPM on 208/230V with ball bearings rated for 60°C continuous operation.
Product Overview
Built with a short 4" body and 1/2" x 5" shaft, this multi-horsepower condenser motor covers 1/2, 1/3, 1/4, and 1/5 HP applications at 1075 RPM on 208/230V. Reversible rotation, thermal protection, and a totally enclosed ball bearing design make it a versatile replacement for common HVAC condenser fan setups.
Features
- Horsepower: 1/2, 1/3, 1/4, 1/5 HP
- Speed: 1075 RPM
- Voltage: 208/230V
- Bearing: Ball bearing, rated to 60°C
- Shaft: 1/2" x 5"
- Short 4" body
- Reversible rotation
- Totally enclosed
- Rheem mounting holes
- 36" leads
- Thermal protection
- Operating temp: -4°F to 104°F (-20°C to 60°C)
SHARE:
View full details
Direct Replacements
| MFG Name | MFG# |
|---|---|
| MARS | 10468 |
| AOS / CENTURY | FE6002 |
| MARATHON | X076 |
| WAGNER / DIVERSITECH | WG840468 |
| CARRIER / TOTALINE RCD | P257-E5465 |
| GENTEQ / GE | 3468 |
| YORK SOURCE 1 | S1-FHM3468 |
| US MOTORS / NIDEC | 5465 |
| NORDYNE PARTNERS CHOICE | 01-0697 |
