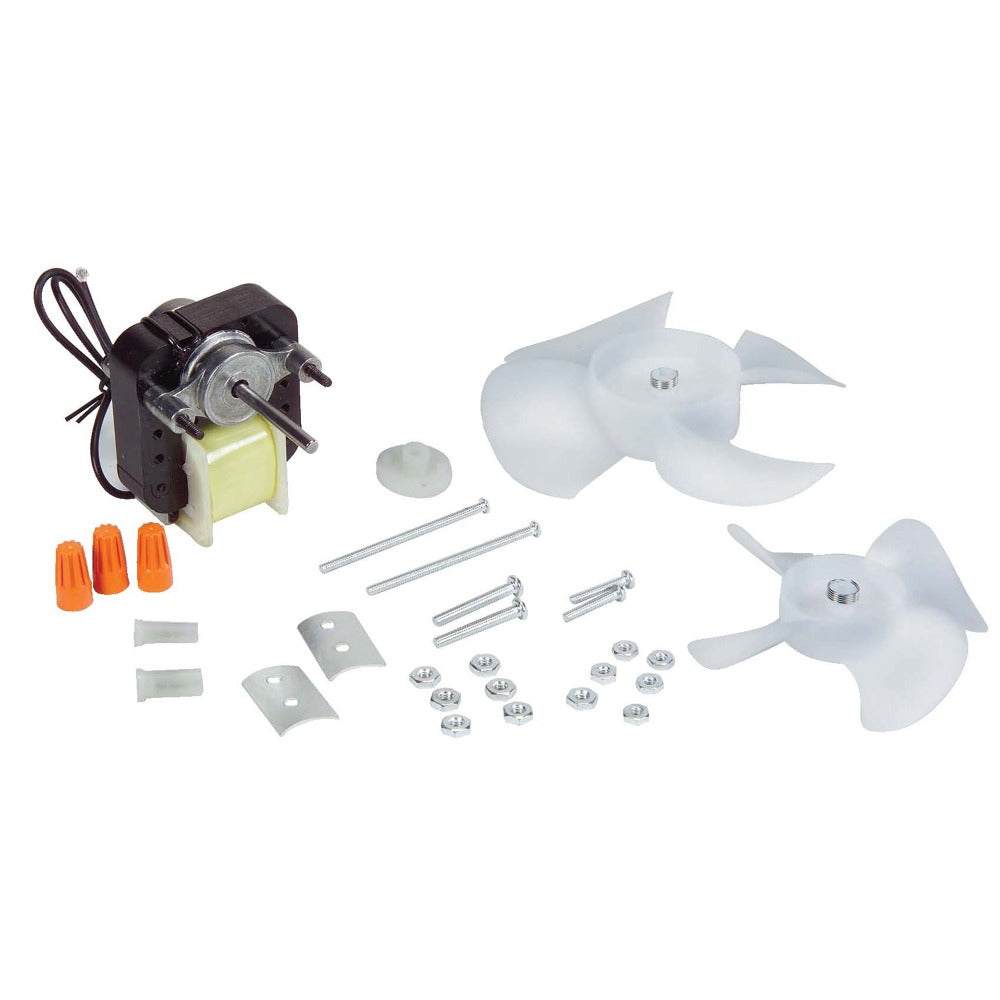

C-Frame Evaporator Fan Motor – 1/130HP, 120V, with Accessories
C-Frame Evaporator Fan Motor – 1/130HP, 120V, with Accessories
SKU: SC670
PRODUCT TYPE: C-FRAME EVAPORATOR
Versatile C-frame evaporator fan motor with included accessories for coolers, freezers, and range hood applications.
This 1/130 HP C-Frame Evaporator Fan Motor (120V) comes complete with fan blades, mounting bracket, and shaft adapters for a variety of refrigeration and ventilation setups.
Product Overview
Built with a recirculating oil system and Class A insulation, this UL and CSA recognized C-frame motor supports all-angle mounting and mechanically reversible operation. It's commonly used across walk-in coolers, reach-in refrigerators, evaporators, range hoods, exhaust fans, and electric unit heaters.
Features
- Horsepower: 1/130 HP
- Voltage: 120V
- Speed: 3000 RPM
- Frequency: 60 Hz
- Bearing: Sleeve bearings
- Insulation: Class A
- Recirculating oil system
- UL and CSA recognized
- All angle mount
- Mechanically reversible
- Impedance protection
- Includes: 4" CW fan blade, 5 1/2" CCW fan blade, mounting bracket, 1 1/4" shaft adapter, hub adapter
Applications
- Range hoods / exhaust fans
- Evaporators
- Walk-in coolers
- Reach-in refrigerators
- Electric unit heaters
