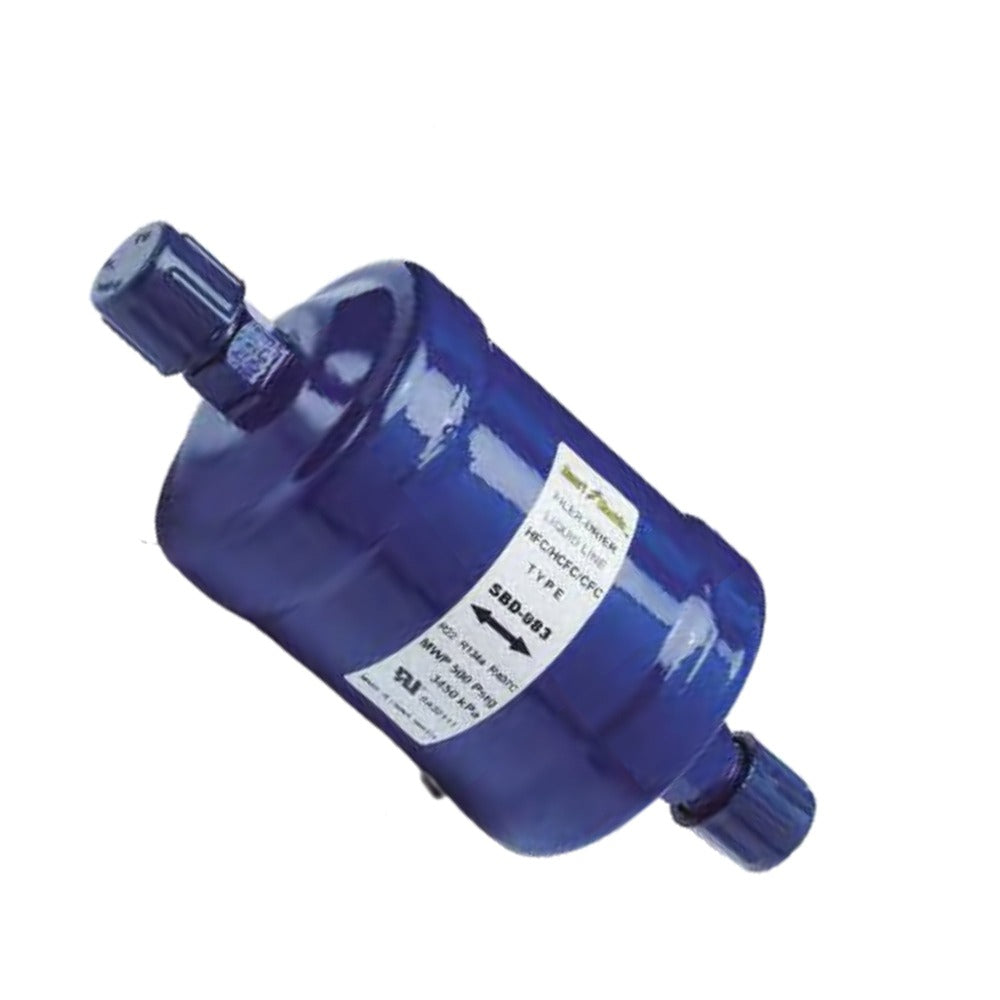

Bi-Directional Filter Drier – SBD-083, Size 8, 3/8" SAE
Bi-Directional Filter Drier – SBD-083, Size 8, 3/8" SAE
SKU: SBD-083
PRODUCT TYPE: REFRIGERATION DRIERS
Solid core bi-directional heat pump filter drier for flow and filtration in both directions.
This SBD-083 Bi-Directional Filter Drier (Size 8, 3/8" SAE) includes an internal check valve for filtration in both directions, rated for 680 PSIG working pressure.
Product Overview
Built with an internal check valve, this solid core bi-directional filter drier allows flow and filtration in both directions for heat pump applications. Epoxy powder paint and copper connections support a durable, UL Listed installation rated to a 3400 PSIG bursting pressure.
Features
- Part No.: SBD-083
- Unit Size: 8
- Connection Size & Type: 3/8" SAE
- Working Pressure: 680 PSIG
- Bursting Pressure: 3400 PSIG
- Internal check valve for bi-directional flow and filtration
- Effectively removes moisture, acid, and solid contaminants
- Epoxy powder paint
- Copper connections
- UL Listed

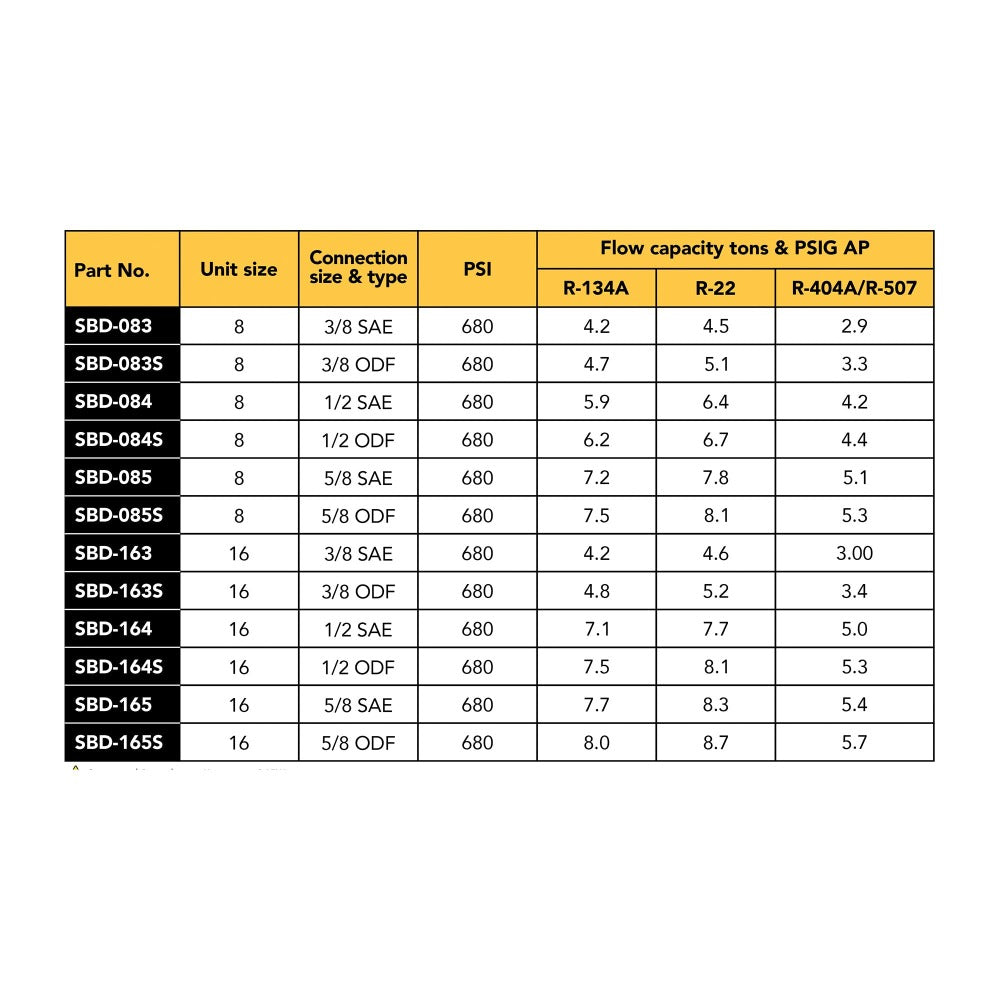

Flow Capacity (Tons) & PSIG AP
- R-134A: 4.2
- R-22: 4.5
- R-404A/R-507: 2.9
