Pressure Switch – SLP10-25, 10 PSI Open / 25 PSI Close
Pressure Switch – SLP10-25, 10 PSI Open / 25 PSI Close
SKU: SLP10-25
PRODUCT TYPE: PRESSURE SWITCHES
Fixed-setting pressure switch for continuous system monitoring and compressor protection.

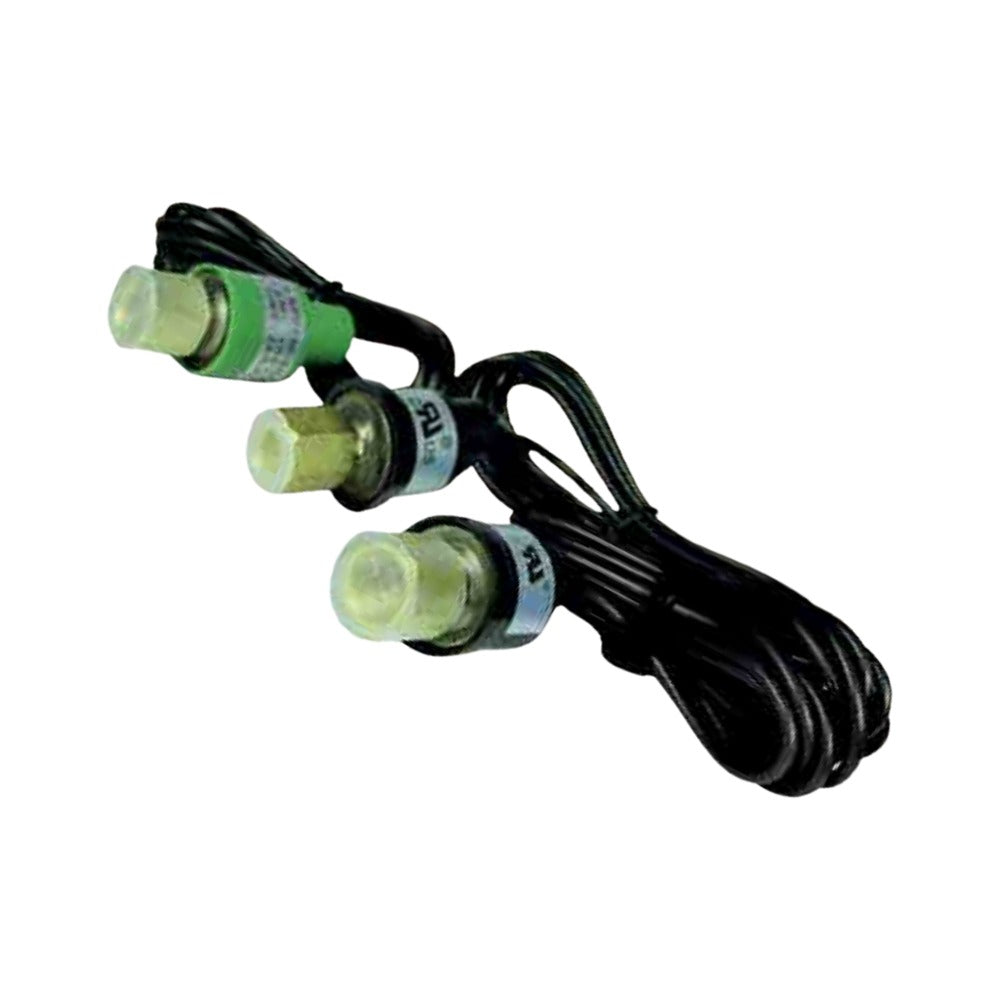

This Pressure Switch (SLP10-25) opens at 10 PSI and closes at 25 PSI, continuously monitoring system pressure to protect the compressor.
Product Overview
Designed for compressor protection and safety, this fixed-setting pressure switch continuously monitors low and high system pressures, cutting off the system when pressure exceeds the rated range. It's available for R-410A pressure ratings with contacts rated at 6 amps.
Features
- Part No.: SLP10-25
- Open: 10 psi
- Close: 25 psi
- Proof Pressure: 250
- Burst Pressure: 5000
- Fixed settings pressure controls
- Voltage: 24V-240V
- Contacts rated at 6 amps
- High pressure cut out: open on pressure rise, automatic reset, normally closed
- Low pressure cut out: open on pressure drop, automatic reset, normally open
- Available for R-410A pressure ratings
