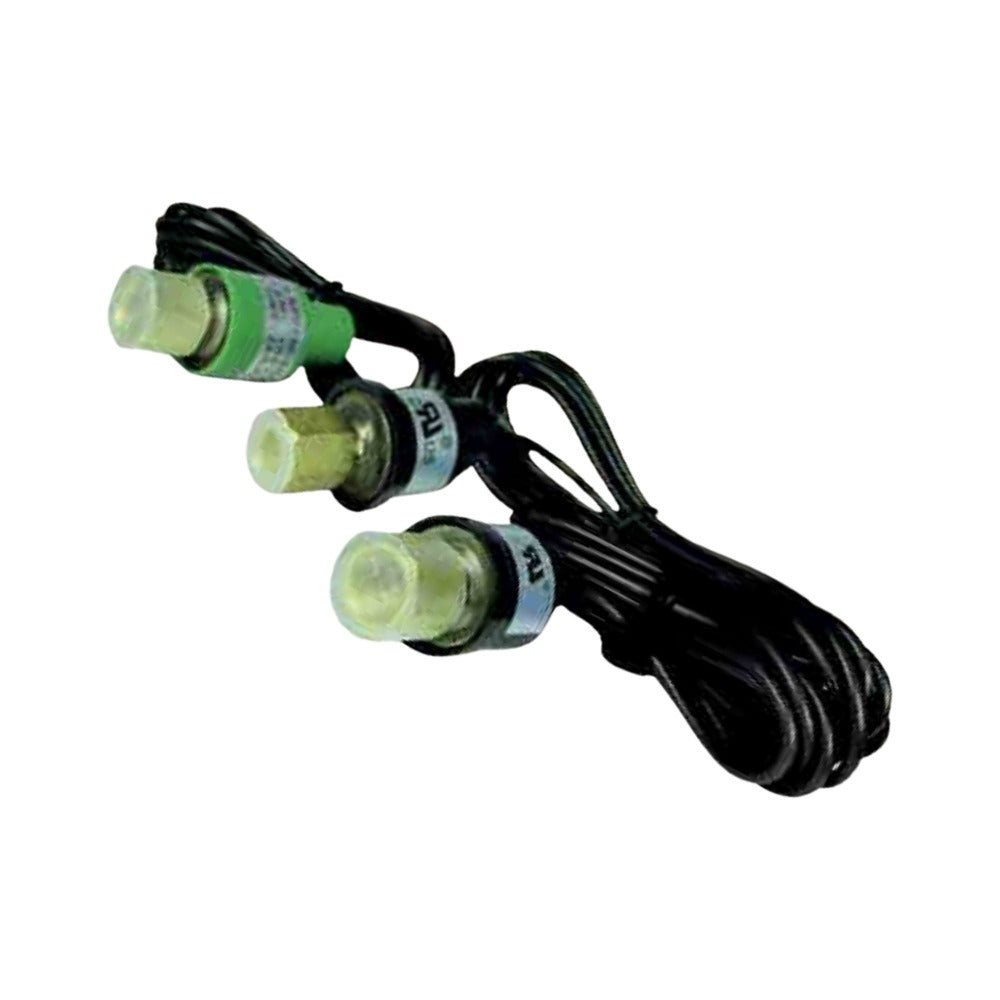

Pressure Switch – SHP200-150, 200 PSI Open / 150 PSI Close
Pressure Switch – SHP200-150, 200 PSI Open / 150 PSI Close
SKU: SHP200-150
PRODUCT TYPE: PRESSURE SWITCHES
Fixed-setting pressure switch for continuous system monitoring and compressor protection.
This Pressure Switch (SHP200-150) opens at 200 PSI and closes at 150 PSI, continuously monitoring system pressure to protect the compressor.
Product Overview
Designed for compressor protection and safety, this fixed-setting pressure switch continuously monitors low and high system pressures, cutting off the system when pressure exceeds the rated range. It's available for R-410A pressure ratings with contacts rated at 6 amps.
Features
- Part No.: SHP200-150
- Open: 200 psi
- Close: 150 psi
- Proof Pressure: 500
- Burst Pressure: 5000
- Fixed settings pressure controls
- Voltage: 24V-240V
- Contacts rated at 6 amps
- High pressure cut out: open on pressure rise, automatic reset, normally closed
- Low pressure cut out: open on pressure drop, automatic reset, normally open
- Available for R-410A pressure ratings
