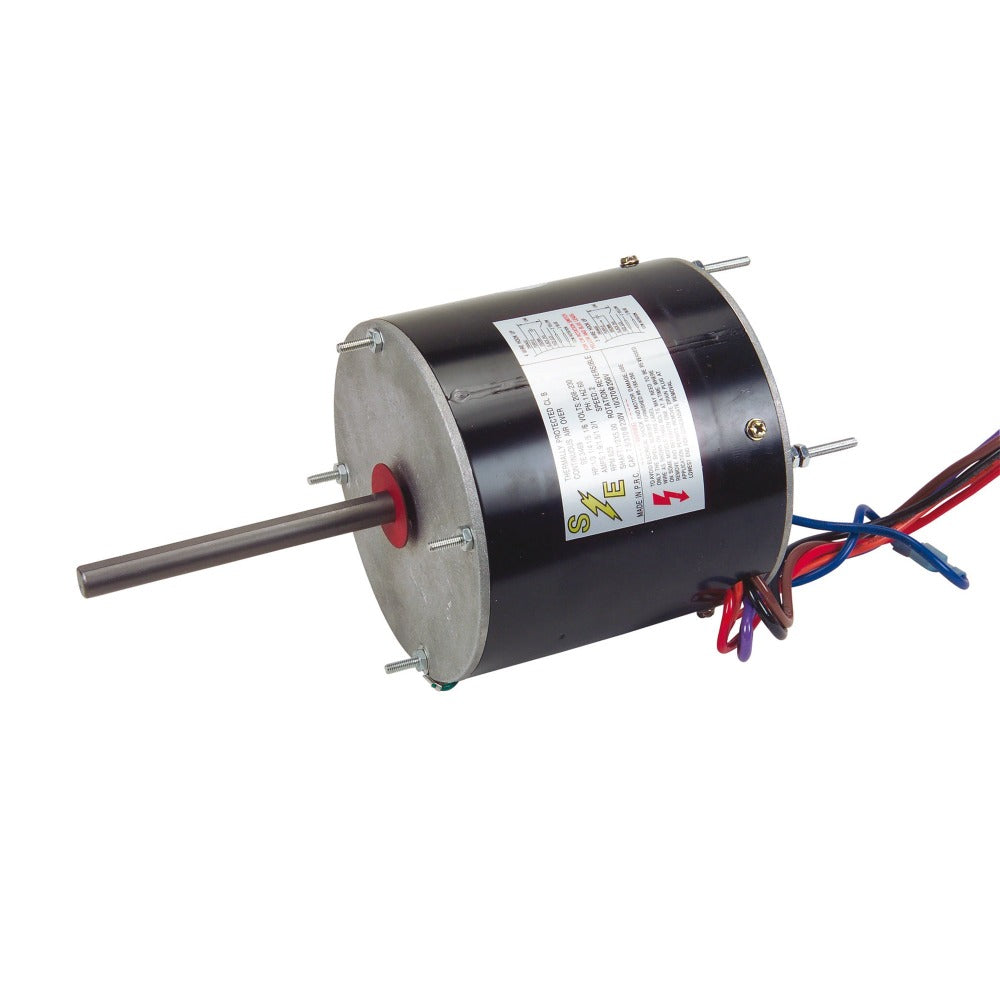

Vertical Condenser Motor – 825RPM, Hi-Temp 70°C, 1/6HP, 203/230V
Vertical Condenser Motor – 825RPM, Hi-Temp 70°C, 1/6HP, 203/230V
SKU: SE3277
PRODUCT TYPE: HVAC MOTORS
Hi-temp rated vertical condenser motor built for demanding outdoor HVAC condenser fan applications.
This 1/6 HP Vertical Condenser Motor runs at 825 RPM on 203/230V with a hi-temp 70°C rating for extended operating range.
Product Overview
Built with a short 4" body and 1/2" x 5" shaft, this PSC condenser motor is rated for a highest operating temperature of 158°F/70°C, with an overall operating range of -4°F to 158°F (-20°C to 70°C). Ball bearings, 2 speeds, reversible rotation, and a totally enclosed design support multi-horse applications.
Features
- Horsepower: 1/6 HP
- Speed: 825 RPM
- Voltage: 203/230V
- Motor Type: PSC
- Ball bearings
- 2 speeds
- Hi-temp rated: 70°C (158°F) highest operating temperature
- Operating temp: -4°F to 158°F (-20°C to 70°C)
- Short 4" body, 1/2" x 5" shaft
- Rheem mounting holes
- 36" leads
- Thermal protection
- Reversible rotation
- Totally enclosed
- Multi-horse application
