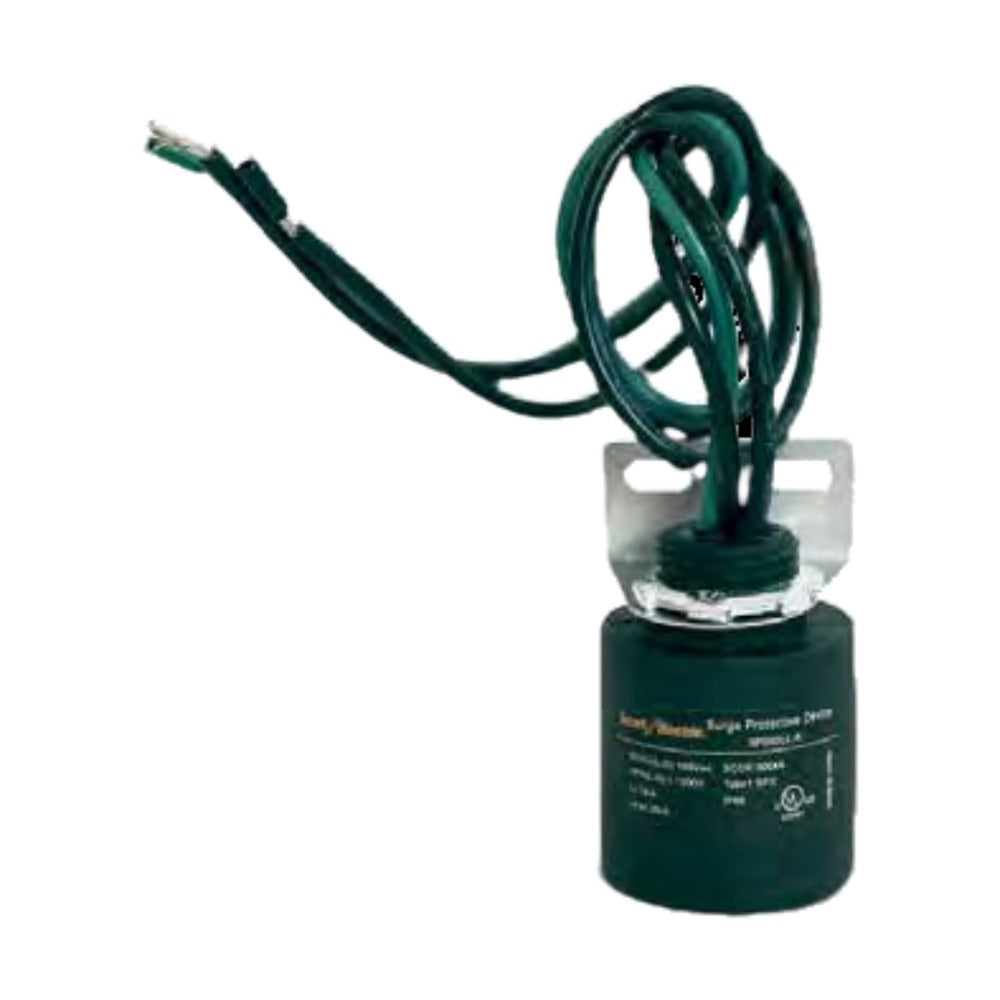

Surge Protective Device – SPD50UL-R, UL Type 1, TFMOV, SCCR 200kA

Surge Protective Device – SPD50UL-R, UL Type 1, TFMOV, SCCR 200kA

SKU: SPD50UL-R   PRODUCT TYPE:  SURGE PROTECTORS

UL Type 1 surge protective device with TFMOV technology for reliable panel protection.

This SPD50UL-R Surge Protective Device is UL 1449 Ed. 4 listed for 120/240 Vac split-phase 2W+G systems, using TFMOV surge component technology with a 200kA short-circuit current rating.

Product Overview

Certified as a UL Type 1 SPD under UL 1449 Ed. 4, this surge protective device uses TFMOV (Thermally Fused MOV) surge component technology. It features an IP66 enclosure and a simple parallel connection for straightforward installation, backed by a 3-year warranty.

Features

  • Part No.: SPD50UL-R
  • Nominal Voltage: 120/240 Vac split-phase 2W+G
  • Certification: UL Type 1 SPD
  • UL Listed: UL 1449 Ed. 4
  • Surge Component Technology: TFMOV
  • Normal Discharge Rating (In): 10kA
  • Short Circuit Current Rating (SCCR): 200kA
  • Max. Continuous Operating Voltage (MCOV): 150/300V
  • VPR: 1200/2000V
  • Enclosure Type: IP66
  • Connection: Simple parallel connection
  • Product Warranty: 3 years
