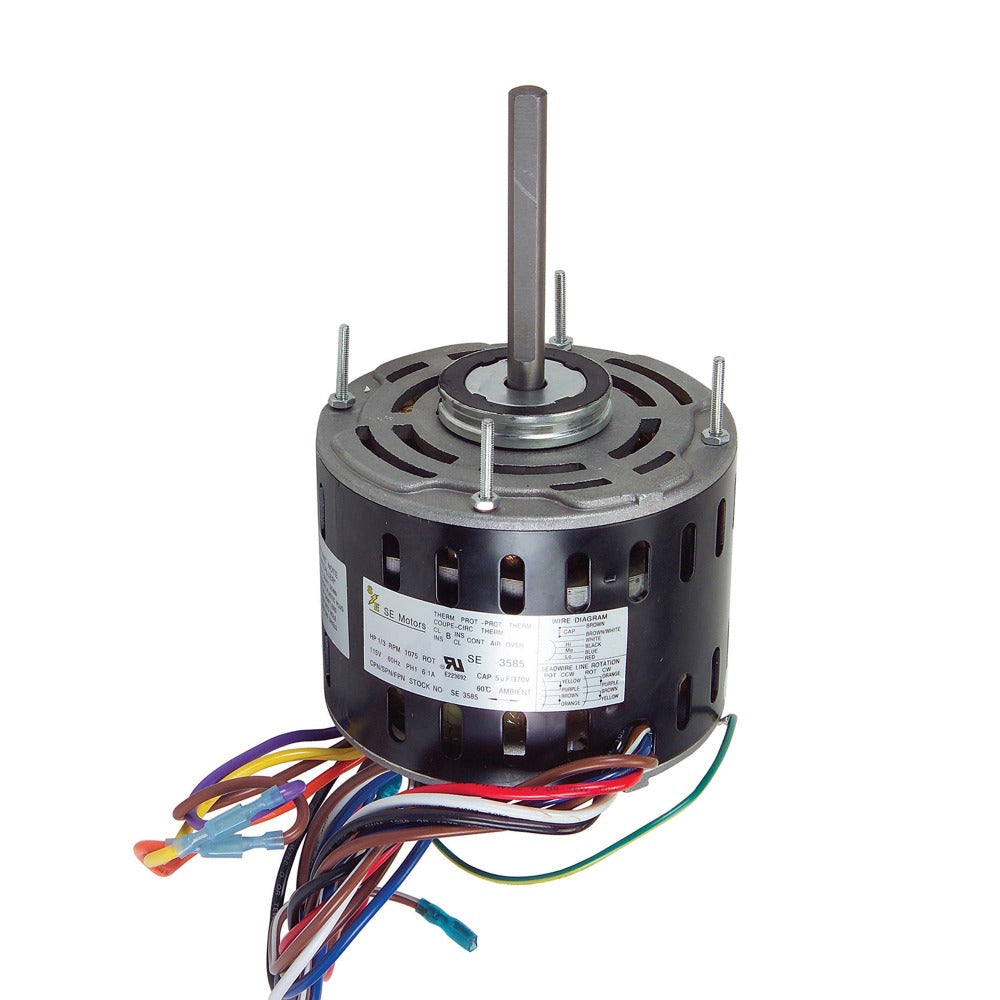

PSC Furnace Blower Motor – 1/4HP, 1075RPM, 208/230V
PSC Furnace Blower Motor – 1/4HP, 1075RPM, 208/230V
SKU: SE3584
PRODUCT TYPE: HVAC MOTORS
1/4 HP PSC furnace blower motor built for reliable, quiet operation in residential HVAC systems.
This 1/4 HP PSC Furnace Blower Motor runs at 1075 RPM on 208/230V, offering reversible rotation and multi-speed operation for a wide range of furnace and air handler applications.
Product Overview
Built on a 48 frame with all-angle sleeve bearings, this PSC furnace blower motor delivers dependable single-phase performance with automatic overload and thermal protection. Rheem mounting holes and 1/2" extended thru bolts simplify installation, while reversible rotation and 3-speed operation add flexibility across common furnace setups.
Features
- Horsepower: 1/4 HP
- Speed: 1075 RPM
- Voltage: 208/230V
- Frame: 48 Frame, 5 1/2" diameter
- 4" length, 1/2" diameter shaft
- 2 1/4" resilient rings, 4 split rings
- All-angle sleeve bearings
- Reversible rotation, 3 speeds
- 1/2" extended thru bolts, Rheem mounting holes
- Automatic overload and thermal protection
- Class B insulation, 26" leads
- Single phase, open air-over enclosure
- Operating temp: -4°F to 104°F (-20°C to 60°C)
