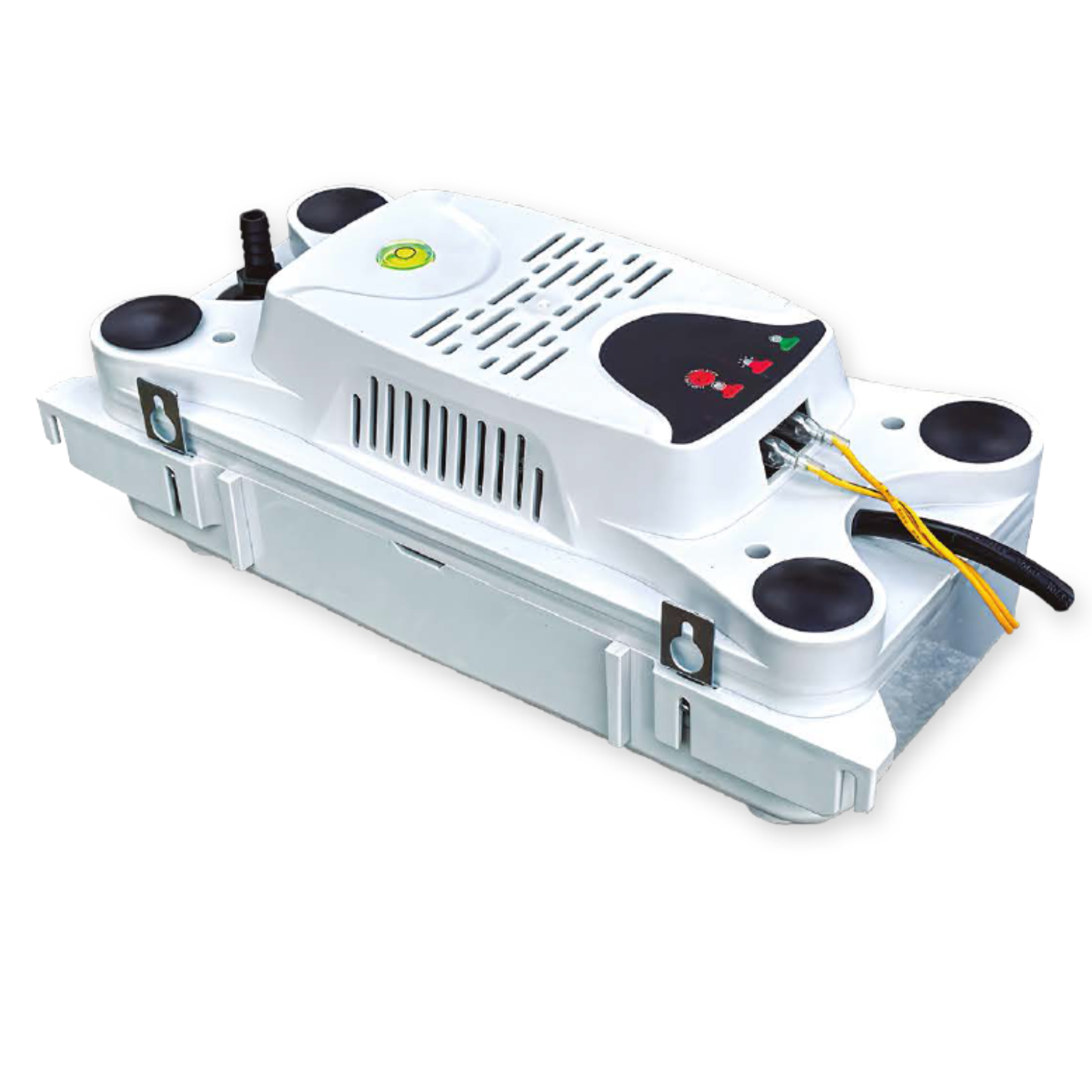

Low Profile Condensate Pump - 20FT 115V
Low Profile Condensate Pump - 20FT 115V
Specifications:
Compact and reliable condensate pump with enhanced reliability and built-in safety features for HVAC systems.
The Low Profile Condensate Pump offers a compact 5" height, thermal protection, automatic overflow safety, and vibration dampening—ideal for gas furnace condensate applications.
Product Overview:
This Low Profile Condensate Pump is designed for compact installations with only 5" height. Featuring a high impact ABS 1/4 gallon tank, thermal overload protection, and a new generation float arm for reliable operation. The pump includes a two-stage motor float switch, built-in overflow safety, rubber vibration pads, and wall mounting tabs for easy installation. Suitable for gas furnace condensate systems with water temperatures up to 120°F. One-year limited warranty included.
Features:
- Compact design – only 5” tall
- High impact ABS 1/4 gallon tank
- 6’ power cord with grounded 3-pronged plug
- Thermal overload protection
- New generation float arm for enhanced reliability
- Two-stage motor float switch (Start/Stop)
- Built-in automatic overflow safety switch
- 20’ shut-off head
- Replaceable 3/8” O.D. barbed discharge valve
- Four inlet drain openings
- Built-in wall mounting tabs
- Rubber pads for vibration dampening
- Suitable for gas furnace condensate applications
- Max water temperature: 120°F
- One-year limited warranty
