Neoprene Isolation Mounts - Max Load 264 lbs
Neoprene Isolation Mounts - Max Load 264 lbs
Durable neoprene isolation mounts for vibration reduction in HVAC systems.

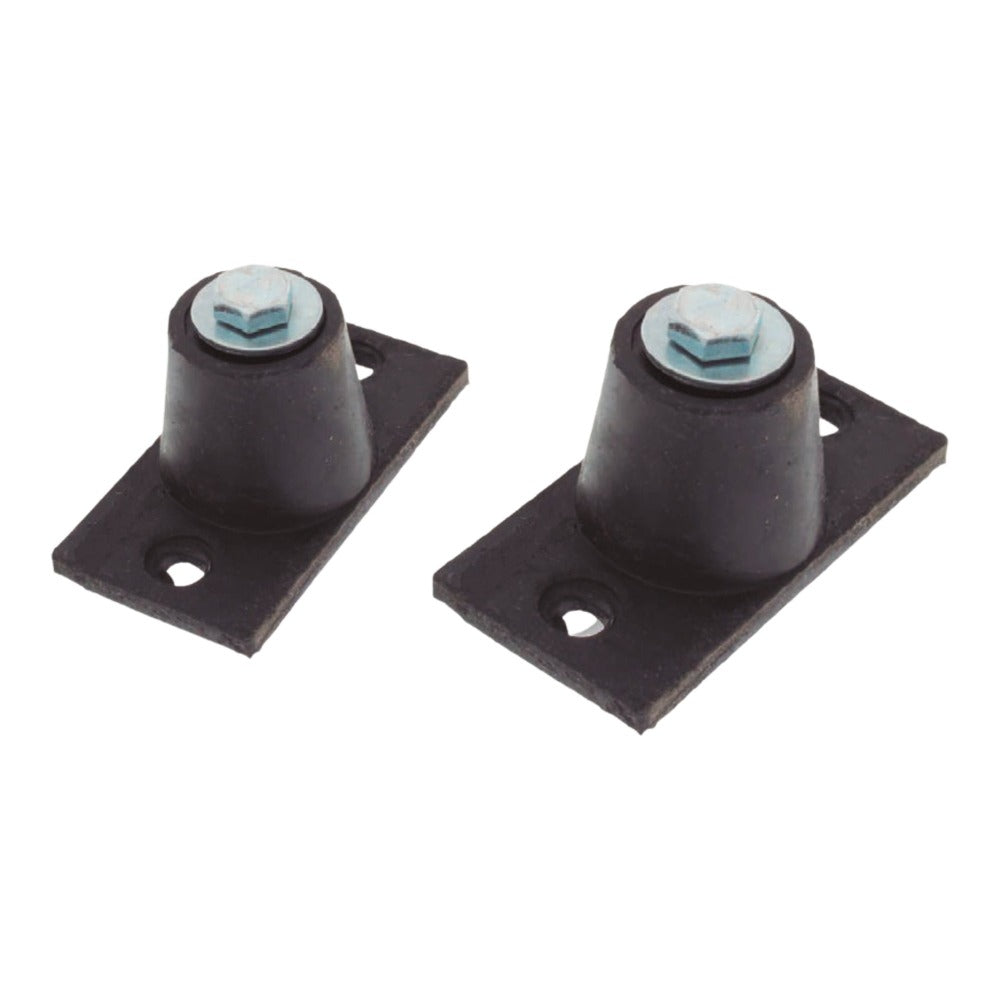

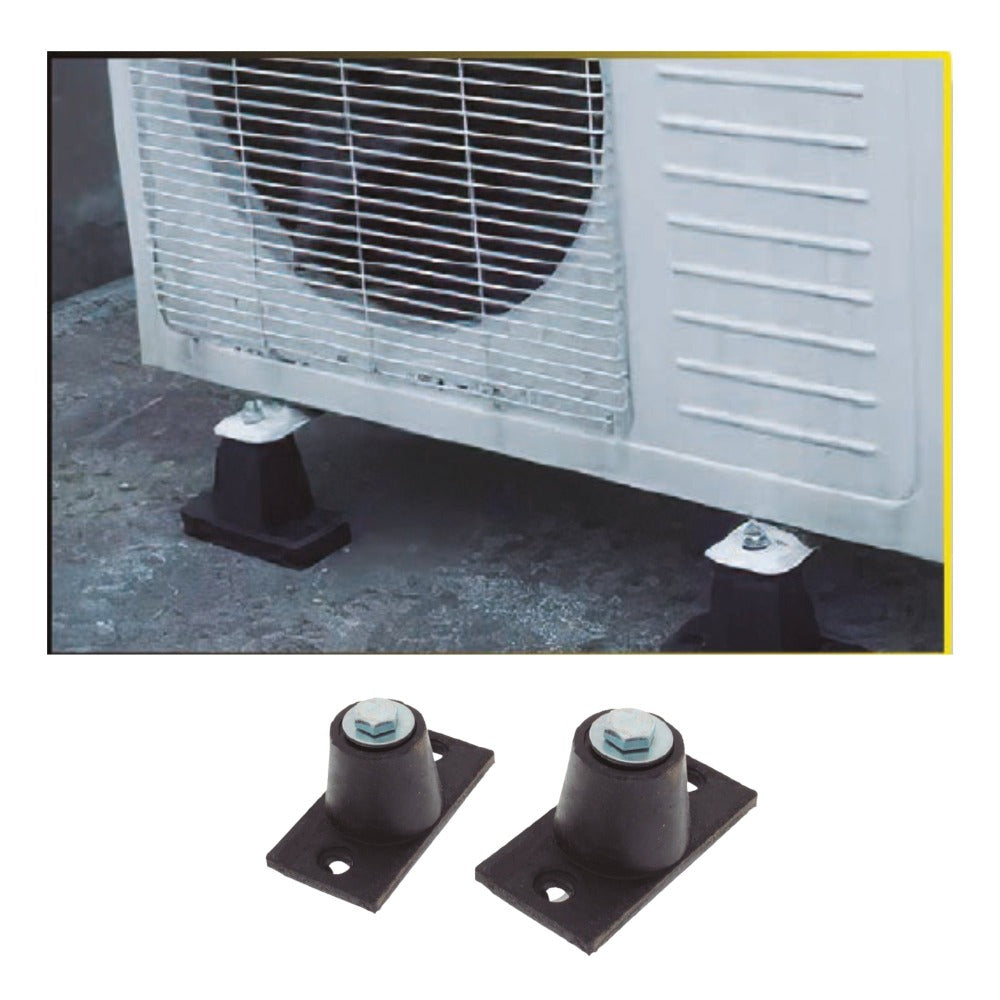

The Neoprene Isolation Mounts (Max Load: 264 lbs.) reduce vibration and noise while providing secure support for HVAC equipment. Built with steel washers, CS cap screws, and straight-line deflection curves, these mounts are perfect for residential and light commercial installations.
Product Overview:

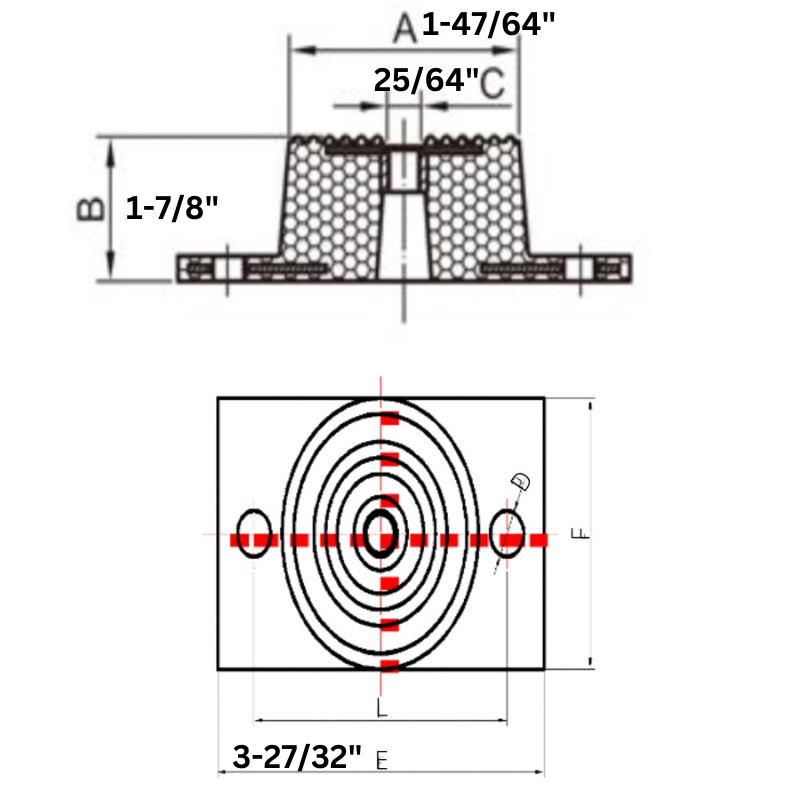

The Neoprene Isolation Mounts are engineered to minimize vibration and noise from HVAC systems. Each mount has a maximum load of 264 lbs. and features a steel washer on top, a CS cap screw, and straight-line deflection curves for predictable performance. Compact and durable, these mounts ensure stable and long-lasting equipment support. Reference dimensions from the photo: A: 1-47/64", B: 1-7/8", C: 25/64", E: 3-27/32".
Features:
- Maximum Load: 264 lbs.
- Steel washer on top for added durability
- CS cap screw included for secure installation
- Straight-line deflection curves for predictable performance
- Compact and durable for residential and light commercial HVAC systems
- Reference dimensions: A: 1-47/64", B: 1-7/8", C: 25/64", E: 3-27/32"
- Packaging: 4 mounts per bag, 16 bags per master carton
