Bi-Directional Filter Drier – SBD-084S, Size 8, 1/2" ODF
Bi-Directional Filter Drier – SBD-084S, Size 8, 1/2" ODF
SKU: SBD-084S
PRODUCT TYPE: REFRIGERATION DRIERS
Solid core bi-directional heat pump filter drier for flow and filtration in both directions.
This SBD-084S Bi-Directional Filter Drier (Size 8, 1/2" ODF) includes an internal check valve for filtration in both directions, rated for 680 PSIG working pressure.
Product Overview
Built with an internal check valve, this solid core bi-directional filter drier allows flow and filtration in both directions for heat pump applications. Epoxy powder paint and copper connections support a durable, UL Listed installation rated to a 3400 PSIG bursting pressure.
Features
- Part No.: SBD-084S
- Unit Size: 8
- Connection Size & Type: 1/2" ODF
- Working Pressure: 680 PSIG
- Bursting Pressure: 3400 PSIG
- Internal check valve for bi-directional flow and filtration
- Effectively removes moisture, acid, and solid contaminants
- Epoxy powder paint
- Copper connections
- UL Listed

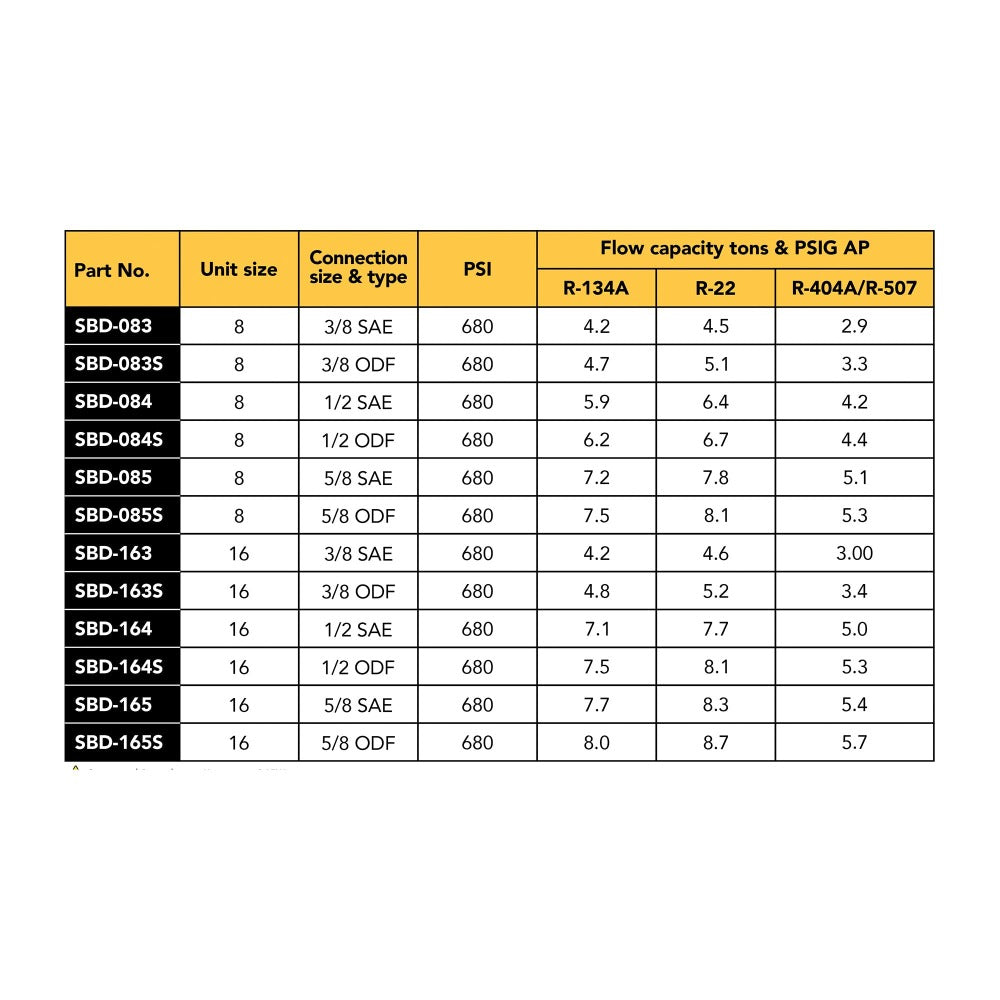

Flow Capacity (Tons) & PSIG AP
- R-134A: 6.2
- R-22: 6.7
- R-404A/R-507: 4.4
