Bi-Directional Filter Drier – SBD-085S, Size 8, 5/8" ODF
Bi-Directional Filter Drier – SBD-085S, Size 8, 5/8" ODF
SKU: SBD085S
PRODUCT TYPE: REFRIGERATION DRIERS
Solid core bi-directional heat pump filter drier for flow and filtration in both directions.
This SBD-085S Bi-Directional Filter Drier (Size 8, 5/8" ODF) includes an internal check valve for filtration in both directions, rated for 680 PSIG working pressure.
Product Overview
Built with an internal check valve, this solid core bi-directional filter drier allows flow and filtration in both directions for heat pump applications. Epoxy powder paint and copper connections support a durable, UL Listed installation rated to a 3400 PSIG bursting pressure.
Features
- Part No.: SBD-085S
- Unit Size: 8
- Connection Size & Type: 5/8" ODF
- Working Pressure: 680 PSIG
- Bursting Pressure: 3400 PSIG
- Internal check valve for bi-directional flow and filtration
- Effectively removes moisture, acid, and solid contaminants
- Epoxy powder paint
- Copper connections
- UL Listed

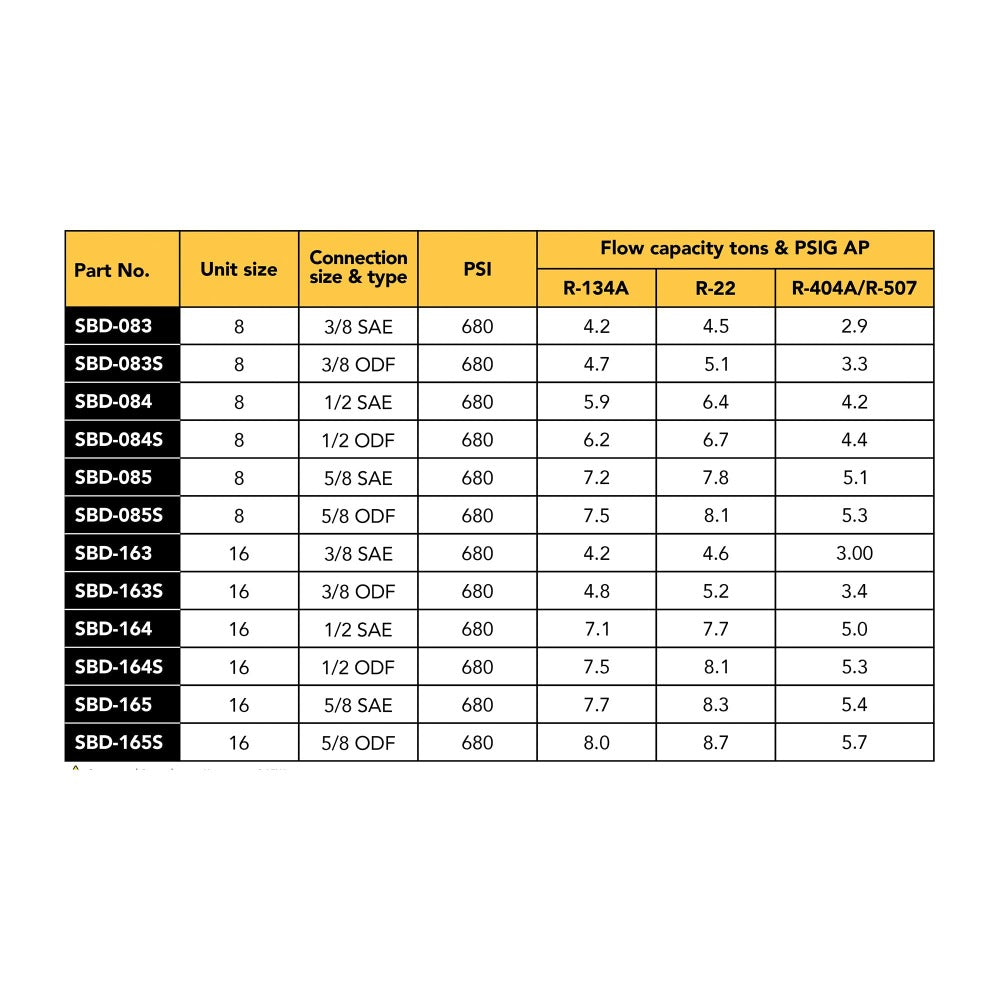

Flow Capacity (Tons) & PSIG AP
- R-134A: 7.5
- R-22: 8.1
- R-404A/R-507: 5.3
