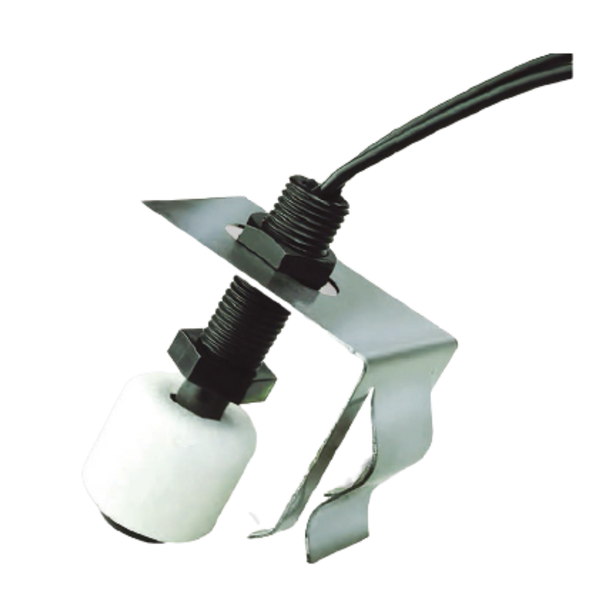

Sealed Switch with 6ft of 18AWG Lead Wire and Stainless Steel Clip
Sealed Switch with 6ft of 18AWG Lead Wire and Stainless Steel Clip
Reliable condensate switch to protect HVAC systems from water damage.
Sealed Switch with 6ft of 18AWG lead wire and stainless steel clip detects clogged condensate drains and shuts off the system, preventing water damage.
Product Overview:

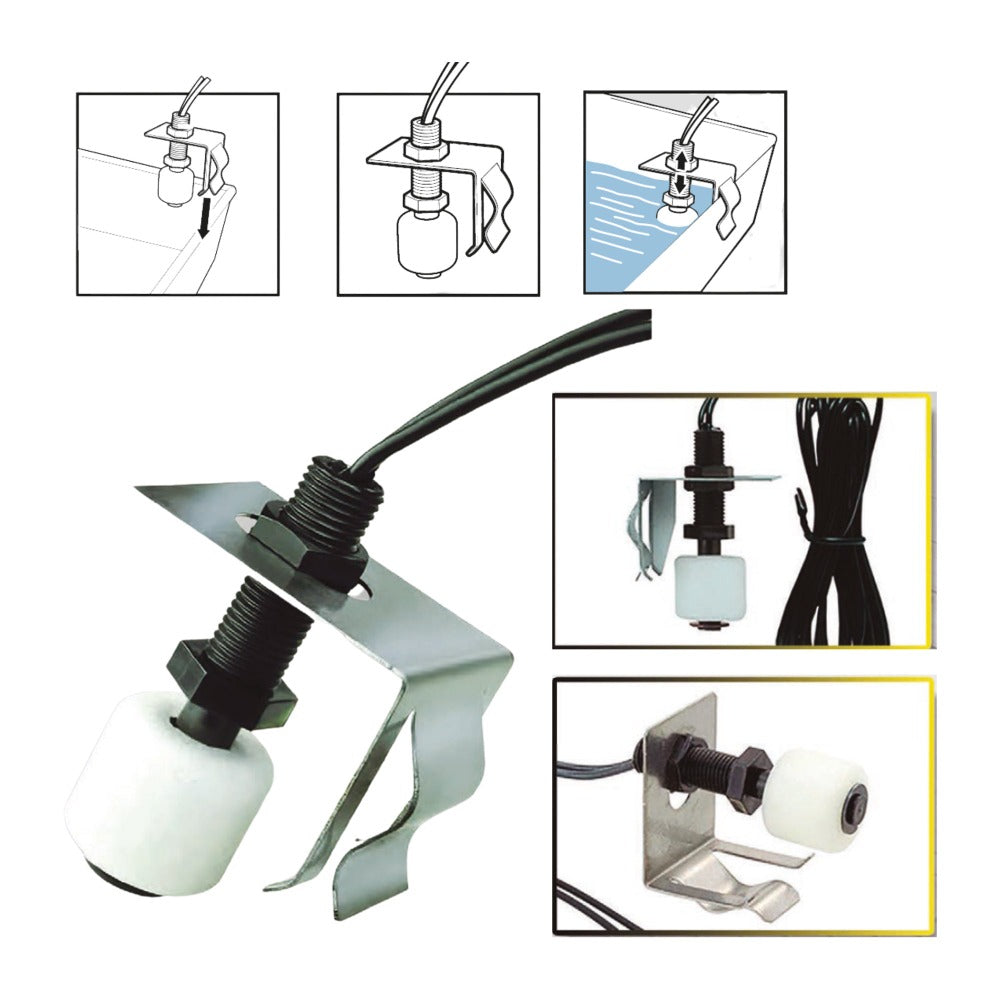

The Sealed Condensate Switch is designed for installation on primary or auxiliary drain pans to detect blocked A/C condensate drains. When the drain pan fills, the switch automatically shuts off the HVAC system, preventing water damage. The switch is UL rated with a switching current of 1.5A at 24VAC and a carry current of 2.5A at 24VAC. Its universal mount allows vertical, horizontal, or in-line installation, and the double magnetic reed switch is height adjustable. The included stainless steel clip fits most drain pans and connects easily to red or yellow wires.
Features:
- For use on primary or auxiliary drain pans
- Automatically shuts off HVAC system when drain clogs to prevent water damage
- UL rated – Switching Current: 1.5A 24VAC / Carry Current: 2.5A 24VAC
- Universal mount: vertical, horizontal, or in-line
- Double magnetic reed switch
- Adjustable height for precise positioning
- Stainless steel clip fits most drain pans
- Connects to red or yellow wires
- Box Quantity: 25 pcs
Includes: Sealed switch with 6ft 18AWG lead wire, stainless steel clip
