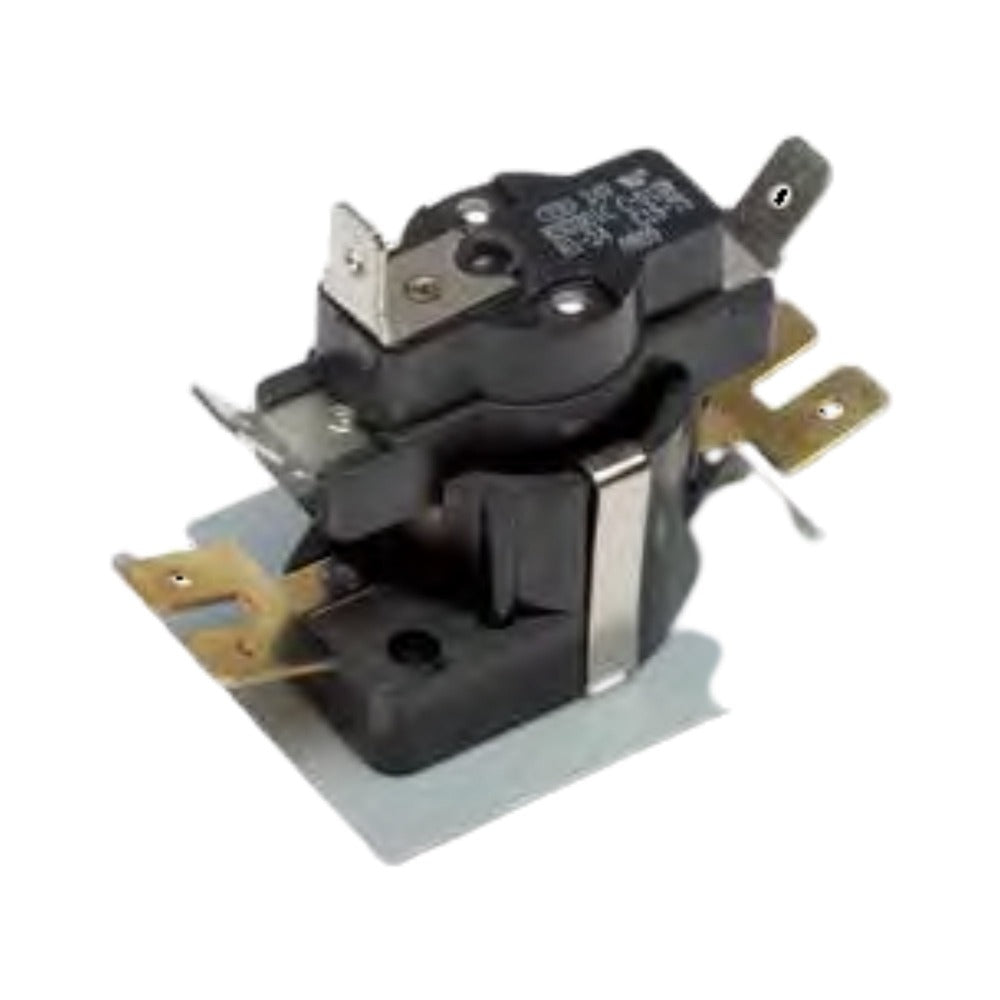

SPST N.O. Sequencer ON: 1-60 OFF: 15-75
SPST N.O. Sequencer ON: 1-60 OFF: 15-75
Specifications:
Reliable SPST N.O. sequencer for precise motor timing control in HVAC systems.
The SPST N.O. Sequencer (ON: 1–60 sec / OFF: 15–75 sec) delivers accurate motor start and stop delays for optimal air conditioner and heat pump performance. Designed with 24V operation and full-load rated auxiliary contacts, each unit is individually packed for protection and professional use.
Product Overview:
The SPST N.O. Sequencer is engineered to delay motor rotation either at start-up or after cut-off, maximizing system efficiency and protecting components. Commonly used in residential and light commercial HVAC systems including air conditioners and heat pumps, it is rated at 24V with full-load auxiliary contacts and individually packed for safe handling and storage.
Features:
- Voltage: 24V
- Full-load rated auxiliary contacts
- ON delay: 1–60 seconds
- OFF delay: 15–75 seconds
- SPST (Single Pole Single Throw) normally open configuration
- Smart sequencer design for delayed motor rotation at start-up or after cut-off
- Individually packed for protection and ease of handling
- Ideal for air conditioners and heat pump applications
