ECM motor programming tool designed for speed-tap torque adjustment on Smart Electric SECM-C motors.
The SECM-C Motor Programmer allows precise torque adjustment for individual motor speed taps. Featuring an LED percentage display, adjustment buttons, and a dedicated programming connection, it enables torque settings to be written directly to compatible SECM-C motors.
Product Overview
The SECM-C Programmer is designed to fine-tune the torque value of each speed tap on compatible SECM-C motors. The tool displays the selected torque as a percentage of the motor's maximum torque, allowing technicians to increase or decrease the setting in 1% increments and save the adjusted value directly to the motor.

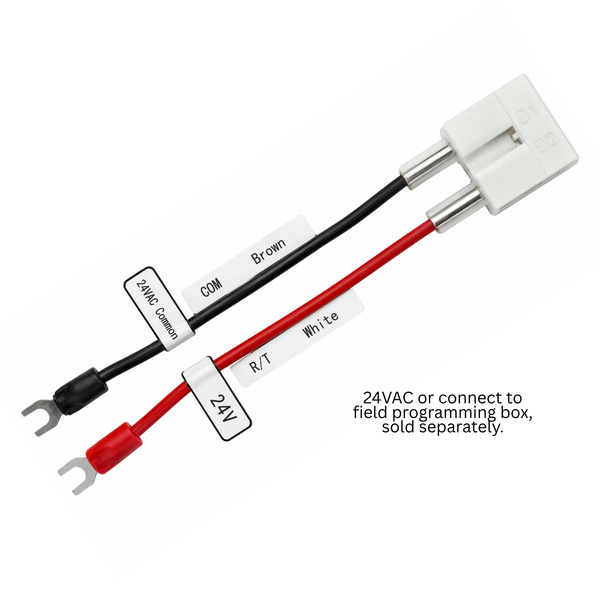

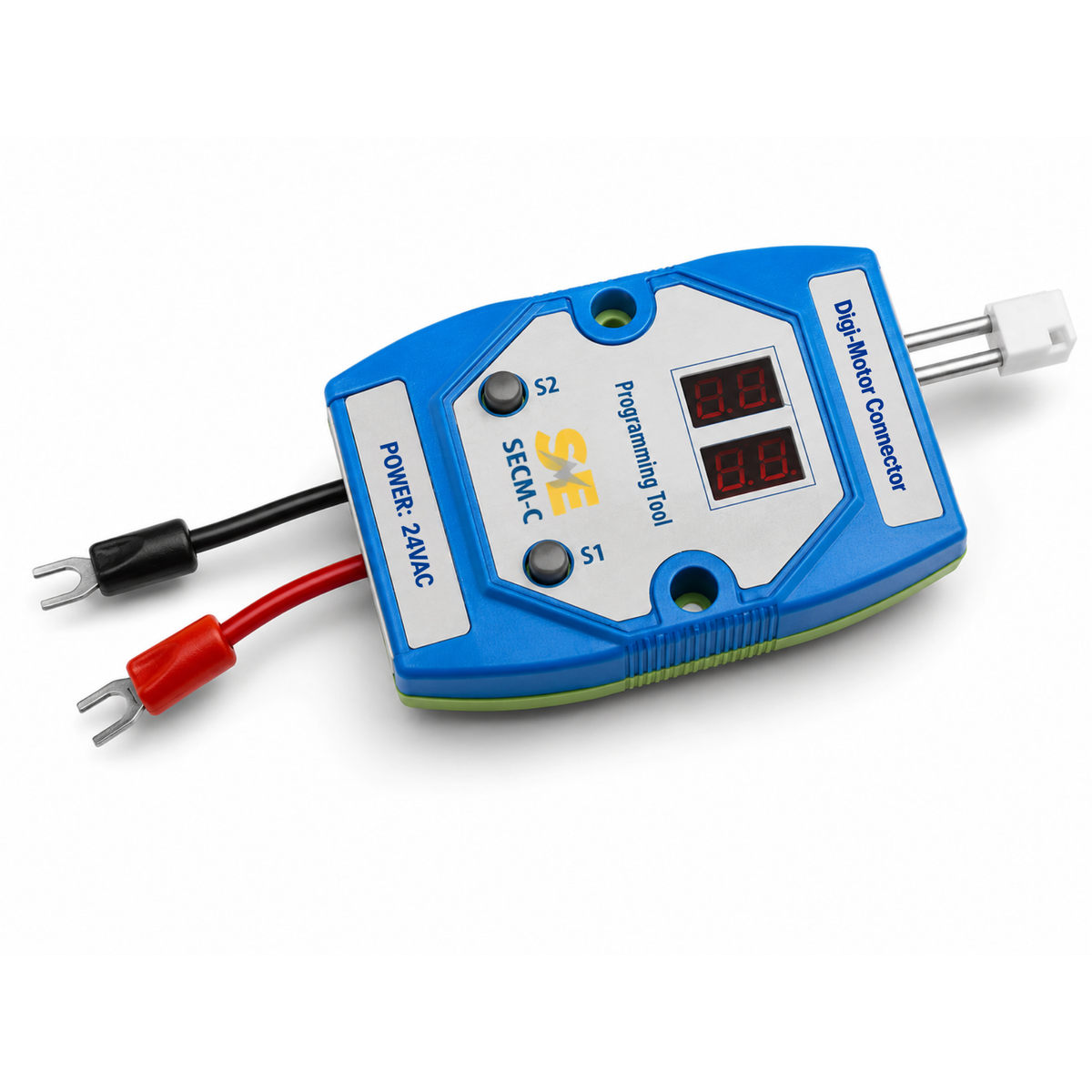

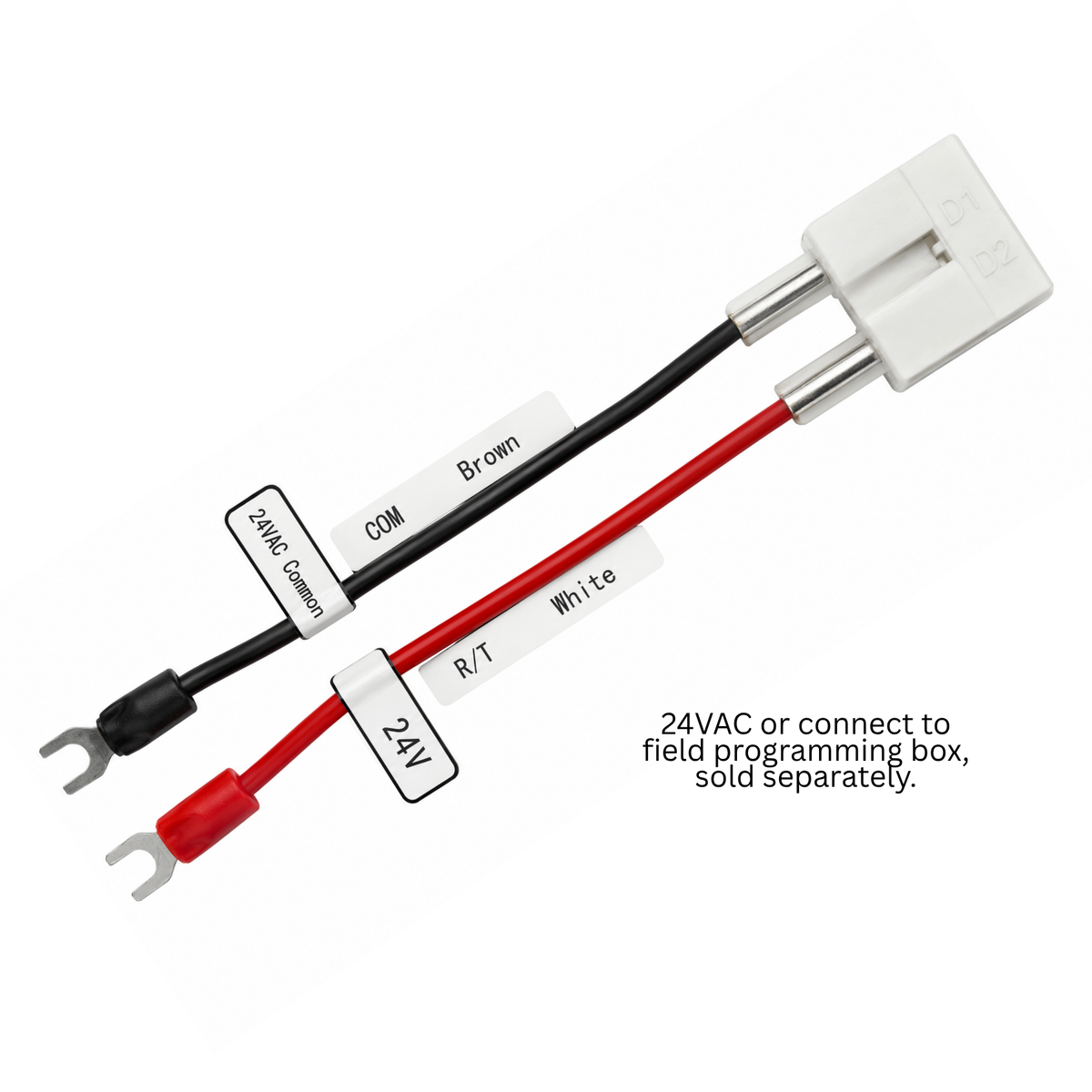

The programmer connects to a 24 VAC power source and communicates with the motor through its D1/D2 programming port. It features S1 and S2 adjustment buttons, an LED display for torque percentage and programming status, and a factory reset function to restore default torque settings and PSC mode.
Features
- Part Number: SECM-C
- Application: SECM-C motors
- Function: Individual speed-tap torque adjustment
- Torque Display: Percentage of maximum motor torque
- Adjustment Increments: 1% per button press
- Speed Taps: T1 through T5
- Power Connection: 24 VAC
- Programming Connection: Motor D1/D2 port
- Controls: S1 increase and S2 decrease buttons
- LED Display: Torque percentage and programming/error status
- Memory Function: Saves selected torque values to the motor
- Factory Reset: Restores default torque settings and PSC mode
- Power Leads: 39.4" (1000 mm)
- Programming Lead: 19.7" (500 mm)
