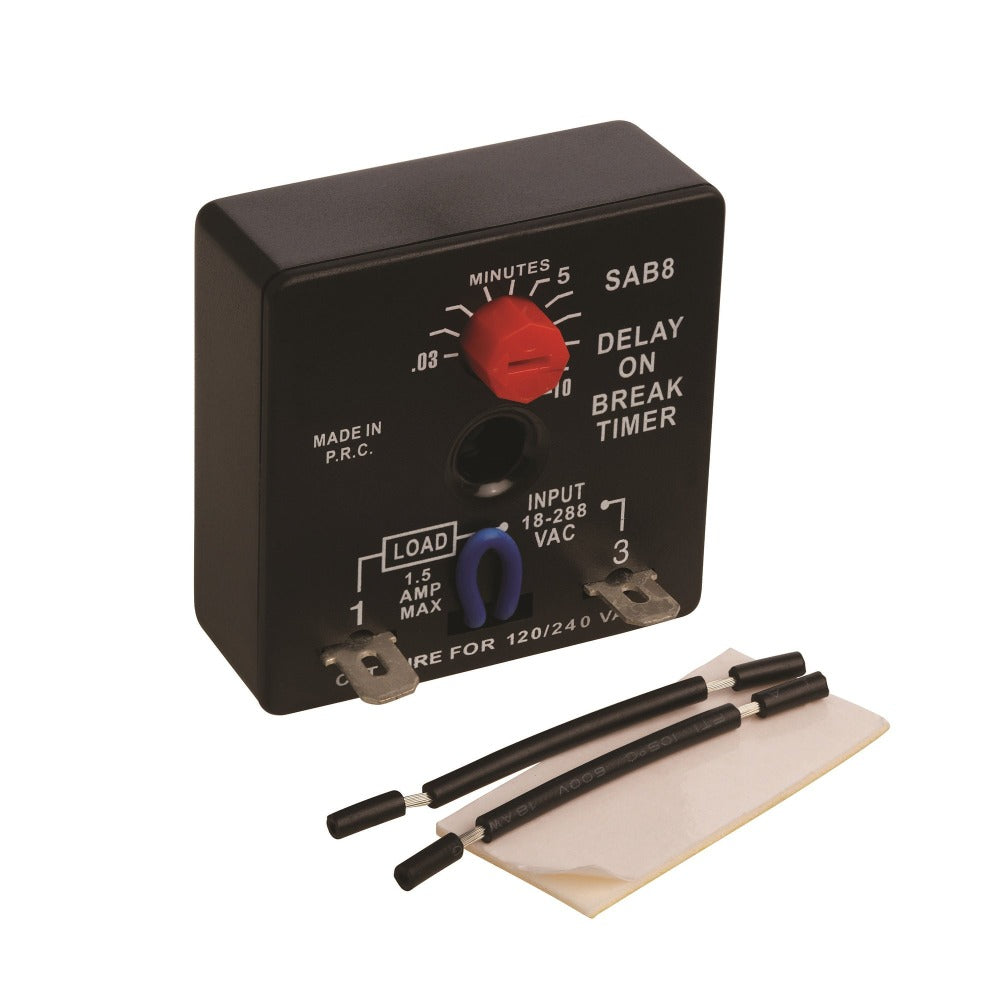

Adjustable Time Delay on Break Timer
Adjustable Time Delay on Break Timer
SKU: SAB8
PRODUCT TYPE: TIME DELAYS
Adjustable time-delay-on-break control designed to prevent short cycling and protect HVAC systems.
This adjustable time-delay-on-break module offers anti-short-cycle protection for compressors and HVAC controls. With a wide operating voltage range and knob-adjustable timing, it ensures system reliability and prevents rapid cycling damage.
Product Overview:
This adjustable Time Delay-On-Break control protects HVAC systems by enforcing a user-set delay before restart, preventing compressor lock-up and short cycling. Compatible with anticipator thermostats, it features a rugged design and a timing range from 0.03 to 10 minutes, offering flexibility for residential and commercial HVAC systems.
Features:
- Delay-on-break timer
- Anti-short-cycle design
- Lockout protection
- Knob-adjustable delay: 0.03 to 10 minutes
- Compatible with anticipator thermostats
- Wide operating range: 18–240 VAC/VDC (2-wire)
- Output rating: 40mA min, 1.5A max
- In-rush rating: 15A
- Line voltage: 18–240 VAC/VDC
- Line frequency: 50/60 Hz
