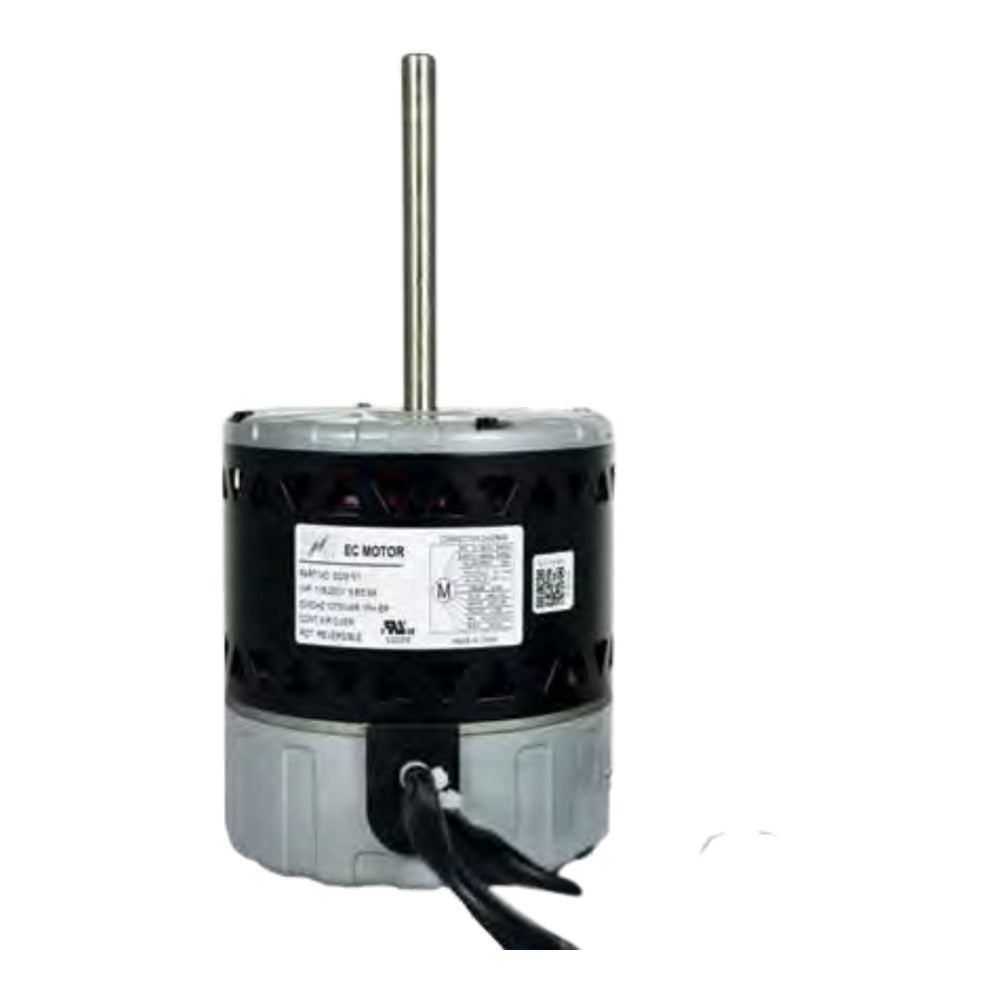

Universal Replacement ECM Motor - 3.3 Torque
Universal Replacement ECM Motor - 3.3 Torque
Specifications:
High-efficiency ECM motor designed to replace hundreds of different motors with dual-voltage capability and advanced protection features.
The Universal Replacement ECM Motor delivers up to 88% efficiency, dual voltage compatibility (115V or 230V), and 3.3 torque. Ideal for residential and commercial HVAC applications, it offers CW/CCW rotation, surge protection, and advanced safeguards for long-lasting performance.
Product Overview:
This high-efficiency ECM motor is designed for easy replacement of hundreds of existing motors. Its dual voltage design allows one motor to replace either 115V or 230V units, providing flexibility and convenience.
The motor includes a 45" wiring harness, 4KV surge protection, and advanced protection features such as OCP, LRP, OVP, LVP, and PLP. CW and CCW rotation capability makes it compatible with a wide variety of HVAC systems, ensuring reliable operation and extended lifespan.
Features:
- High efficiency ECM: up to 88% efficiency
- Dual voltage design: replaces 115V or 230V with one motor
- Torque: 3.3 Nm
- Speed: 1075 RPM
- Rotation: CW & CCW
- 45" wiring harness for easy installation
- 4KV surge protection
- Advanced protection: OCP/LRP/OVP/LVP/PLP
- Insulation Class: F, Time Rating: S1
